Rated limits and measured runs, kept apart.
Platform ratings and measured evidence answer different questions. Ratings define the envelope; measurements describe a run with stated conditions and source.
The rated envelope.
The 700 W per-slot sustained envelope and the 8000 W sustained chassis figure are platform maxima; achievable sustained power depends on the chosen components and ambient conditions.
Source: LM TEK 4U8GPU10KW published specifications.
| Rated | Value |
|---|---|
| GPU power envelope | Up to 700 W per slot sustained |
| Power envelope | 10 kW installed (5 × 2 kW); 8 kW sustained, N+1 |
| Max chassis power | Up to 8000 W sustained |
| Operating temperature range | 5–30°C ambient · 5–60°C coolant |
| Working pressure | 2500 Pa |
| Max pressure | 30 000 Pa (with EK-Pro PRM) · 75 000 Pa otherwise |
Two-hour torture test
Source: LM TEK test report 631, MAX POWER run.
| Condition | Value |
|---|---|
| Duration | 2 h |
| Ambient | 29°C measured; air-conditioning set point 30°C |
| Load programme | Maximum-power torture test |
| GPU slots populated | 8 |
| Measured | Result |
|---|---|
| GPU package | 76 to 81°C |
| CPU | 68°C |
| DRAM | 36 to 39°C |
| Coolant, radiator outlet / inlet | 44 / 58.4°C |
| System flow | 273 l/h |
| Dual D5 pumps | 4500 RPM at 100% PWM |
These results describe that run, not validation of a 700 W-per-slot configuration.
80-hour continuous run
Source: LM TEK test report 631, long-term run.
| Condition | Value |
|---|---|
| Duration | 80 h continuous |
| Ambient | 21.4 to 23.2°C (22°C nominal) |
| Load programme | Synthetic full load on the CPU and all eight GPU slots |
| Pumps and fans | 100% PWM |
| GPU slots populated | 8 |
| Measured | Result |
|---|---|
| GPU temperature, all eight slots | 65 to 73°C |
| Coolest slot / warmest slot | 66 to 67°C / 68 to 73°C |
| CPU | 58 to 59°C |
| Coolant into the radiator | 47.9 to 49.4°C |
| Coolant out of the radiator | 34.7 to 36.5°C |
| System flow | 269 to 273 l/h |
Ranges are the minimum and maximum of the 80 hourly readings.
Power delivery in the same run
| Measured | Result |
|---|---|

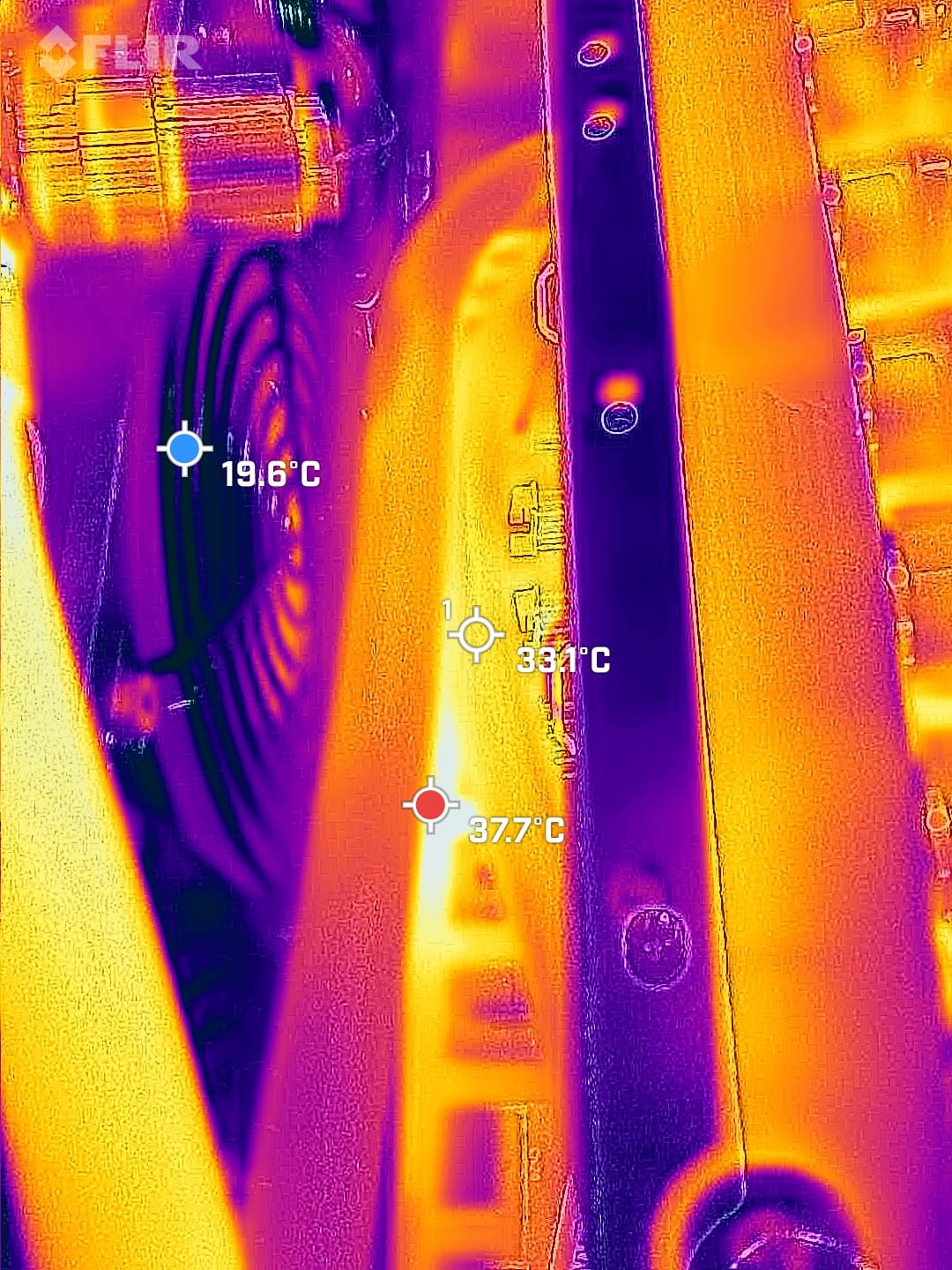

| Power distribution board, maximum | 37.7°C |
| Power supplies, maximum | 35°C |
| GPU power connectors, maximum | 40.4°C |
Measured · separate test
Sustained draw, from a separate test
- Sustained draw
- 6800 to 7000 W
Source: LM TEK long-term endurance testing.
LM TEK long-term endurance testing recorded 6800 to 7000 W sustained draw. This is a separate test from both Report 631 runs above. It has no written report, so its ambient, load programme, duration and populated slots are not published. Further testing is being documented.
Plan for the heat →Further evidence, on request.
- Acoustic measurements under sustained load are available on request.
- Third-party independent measurement reports are available on request under NDA.
The measured conditions do not promise the same result for every configuration.
The platform ships with published validation specs: supported board formats and sockets, the per-slot GPU envelope, block availability, and the operating limits. A configuration inside them is quotable as is. For a board, GPU, or cooling requirement outside them, send LM TEK engineering the intended configuration.
