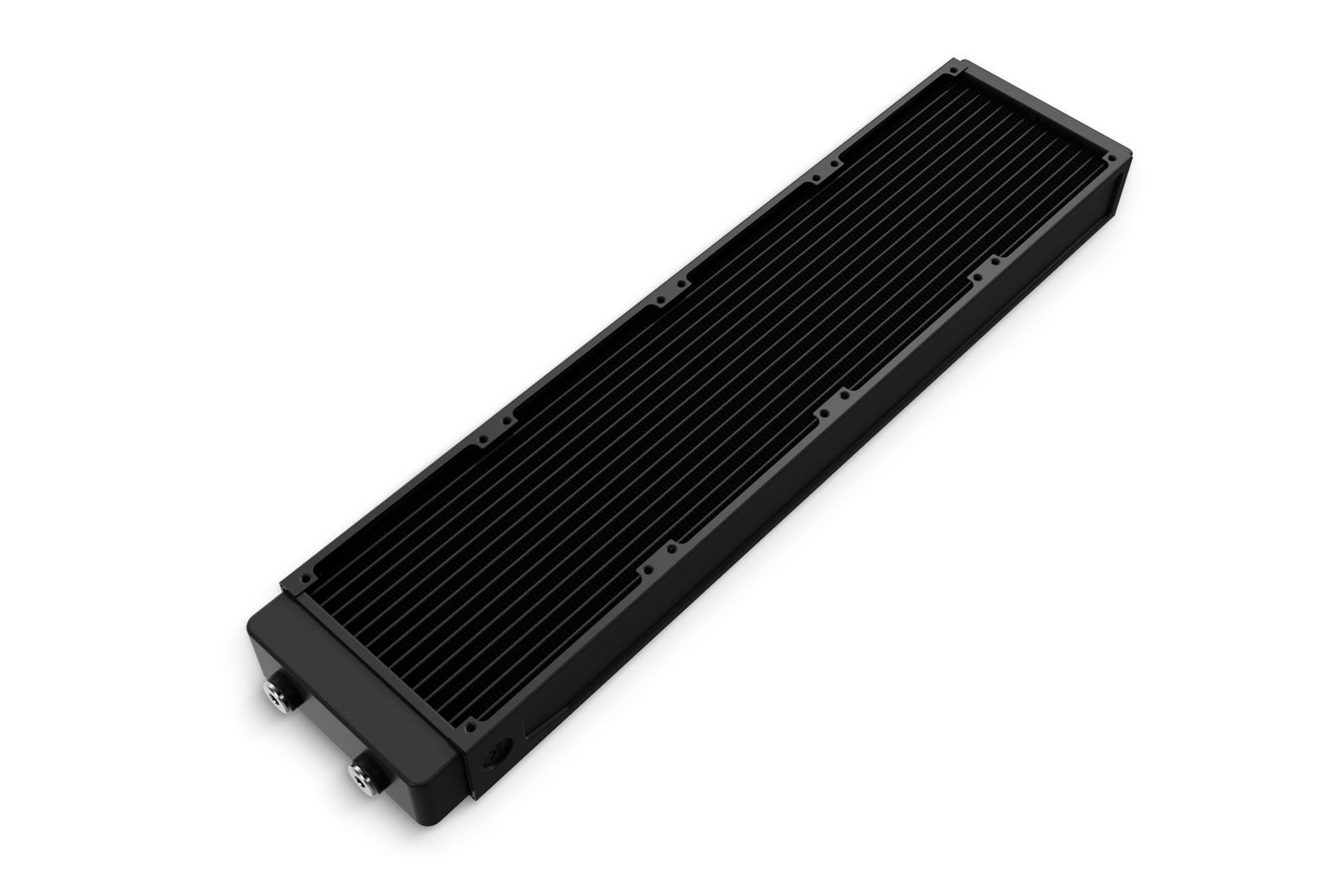

EK-Pro Radiator P480 Multiport - Black

Product EAN: 3831109910085

45mm thick 480mm radiator with four G1/4" ports, 14 copper tubes, and 18 FPI copper fins supporting up to four 120mm fans for high-capacity enterprise cooling loops.

Size: 480mm
Fan size: 120 mm

Overview

High-Capacity 480mm Radiator for Demanding Enterprise Loops

The EK-Pro P Series radiators, with a thickness of 45mm, offer versatile cooling for low noise and high performance with four G1/4" threaded connection ports. Featuring 14 2mm-wide copper tubes for optimal coolant flow and high-grade non-louvered copper fins with 18 FPI density for thermal transfer efficiency, it supports Push/Pull setup for maximum cooling.

Its 120mm width ensures compatibility with most 120mm fan mounts. The radiator comes with hard-wearing black M4 Phillips round-headed screws and low hydraulic restriction design, enabling multiple radiator additions to a single pump setup. Additionally, it provides airflow-friendly and low-restriction operation for enhanced cooling performance.

High-Capacity 480mm Radiator for Demanding Enterprise Loops

Key Engineering

Three design decisions worth calling out

18 FPI Non-Louvered Copper Fins

High-grade 99.9% copper fins at 18 FPI provide efficient heat transfer with minimal airflow resistance, sustaining performance across the full fan operational range from low-RPM silent to high-RPM maximum cooling.

14 x 2mm Copper Tubes

Fourteen 2mm copper tubes distribute coolant across the 480mm length, maintaining even thermal load distribution and minimising hydraulic resistance for multi-component loop compatibility.

Low-Restriction Loop Design

The low hydraulic restriction of the P480 enables multiple radiators to be run in series from a single D5 pump, providing scalable cooling capacity for growing workstation or server builds.

Technical data

Full datasheet

Dimensions (L x H x W)	515.5 x 120 x 45 mm
Materials	High grade 99.9% copper fins, H90 brass tubing, H62 brass end tank chambers, stainless steel side plates, nickel-plated brass plugs
Mass	1.6 kg
Ports	4 x G1/4"
FPI	18
Fan dimension	120 mm

Number of fans	4
Mounting method	Direct to chassis with Phillips head screws
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

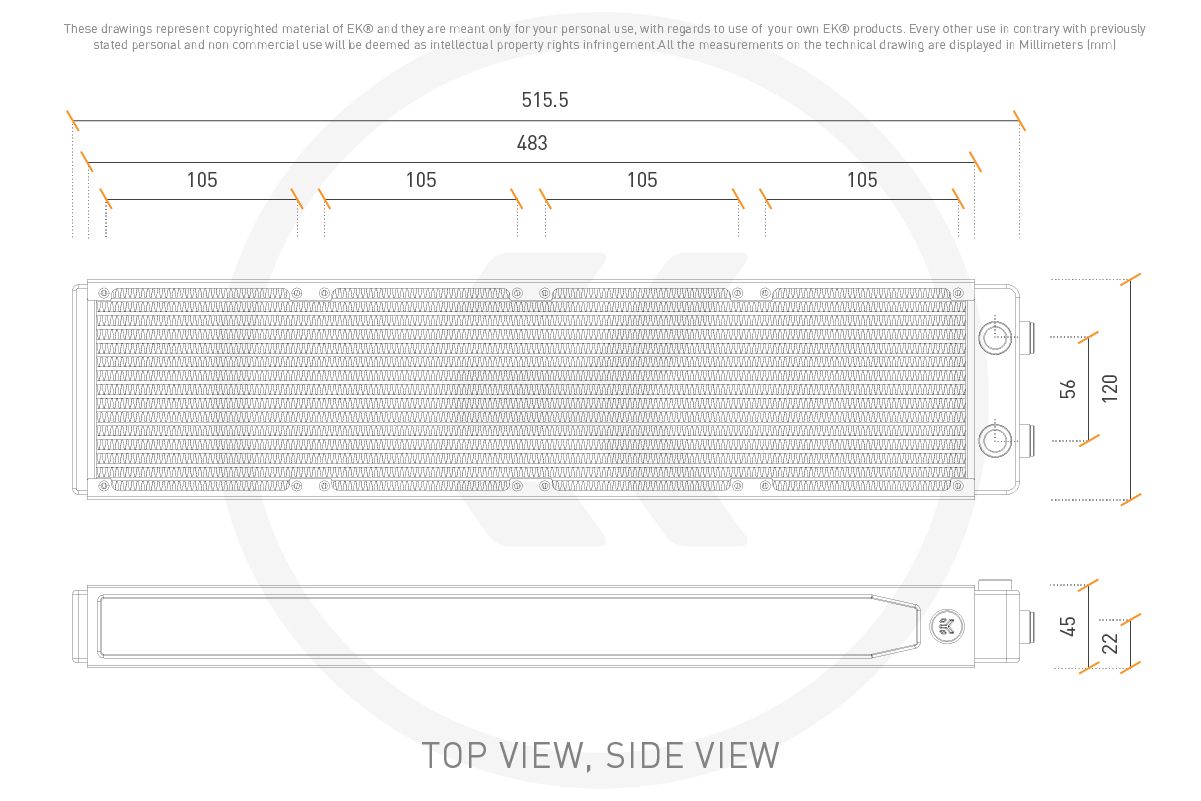

Technical drawing

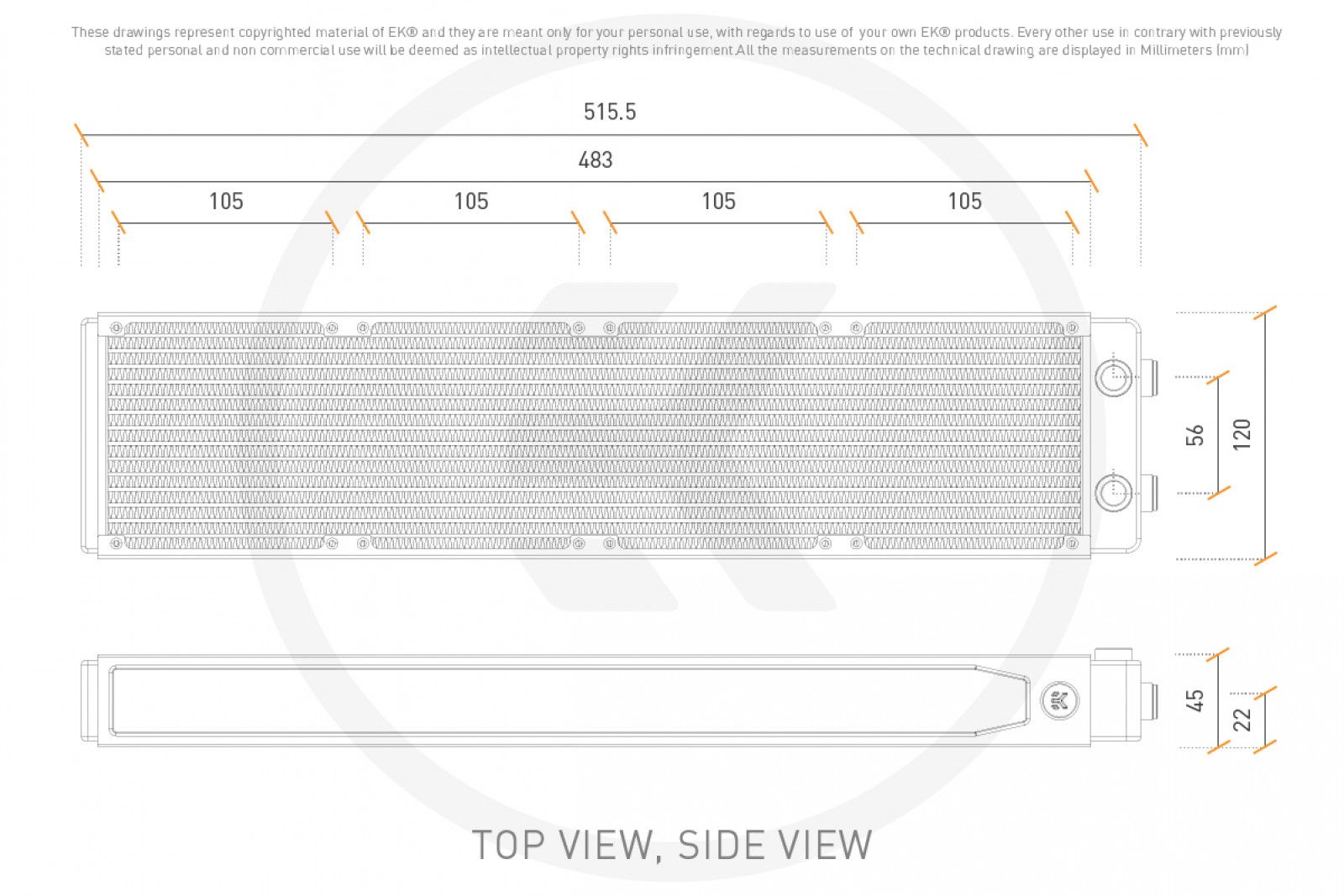

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro.

Compatibility

Fan Compatibility

Compatible with standard 120 x 120 x 25mm fans. Supports four fans in Push, Pull, or Push/Pull configuration. 120mm width ensures compatibility with most standard fan mounts and chassis radiator brackets.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro Radiator P480 Multiport - Black
· 16x Phillips Slotted M4x30mm for 25mm thick fans
· 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
· 6mm steel Allen (Hex) key
· 9mm steel Allen (Hex) key

480mm Enterprise Radiator for High-TDP Cooling Loops

Combine with an EK-Pro Pump Reservoir Manifold and multiple GPU or CPU water blocks to build a high-capacity liquid cooling loop for demanding multi-component workstation and server systems.
