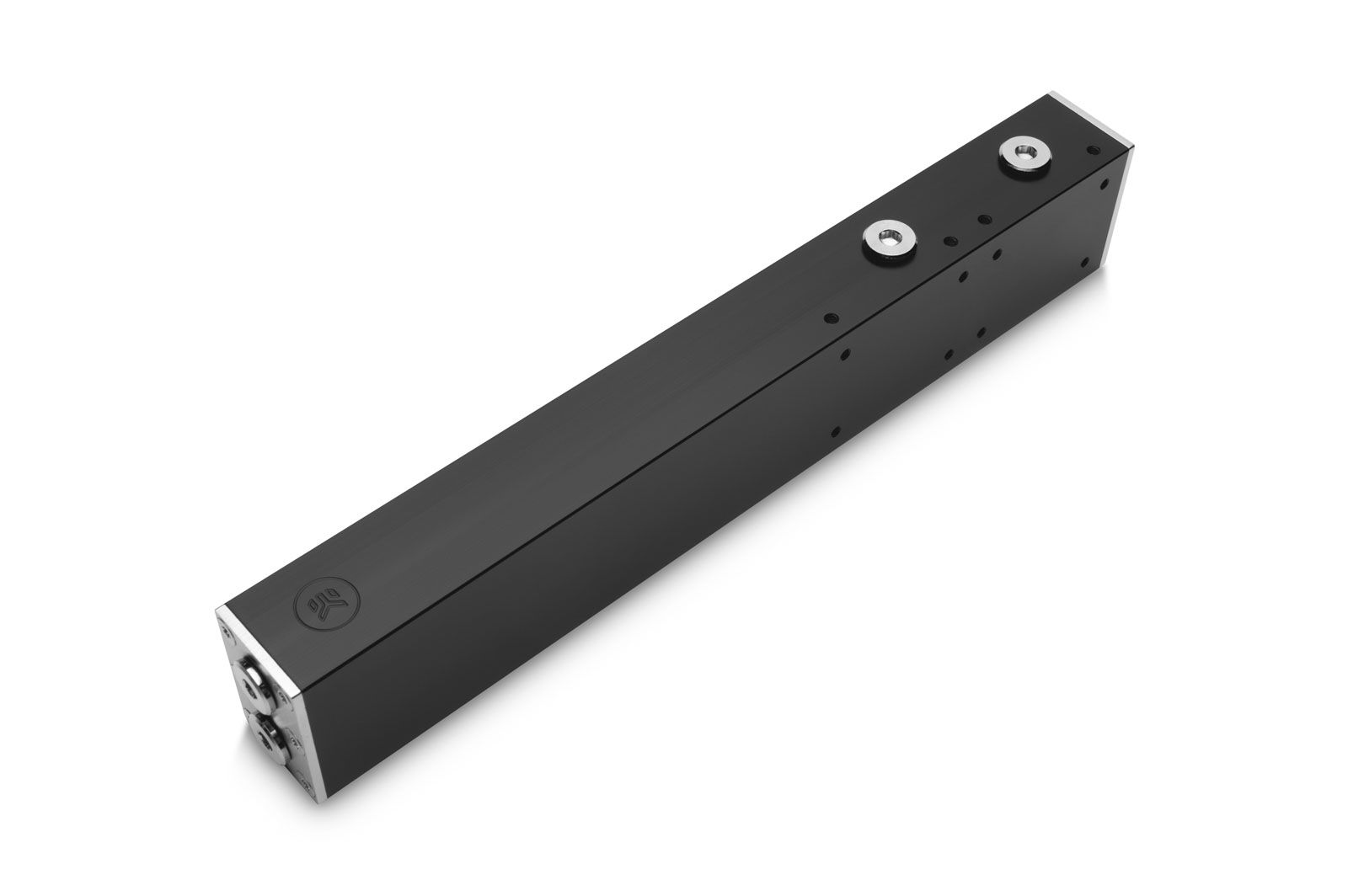

EK-Pro Manifold 2CPU 8GPU - Acetal
Product EAN: 3831109817209Maximum-capacity coolant distribution manifold for workstations supporting two CPU and eight GPU water blocks, with 20 G1/4" ports in parallel or semi-parallel configuration.
- Type
- manifold
- Ports
- 20
Maximum-Density Coolant Distribution for 2-CPU 8-GPU Systems
The EK-Pro Manifold is a purpose-built coolant delivery system for workstation systems, supporting multiple water blocks with perfect coolant distribution through industry-standard ports. It accommodates two CPU and eight GPU water blocks in parallel or semi-parallel setups.
For seamless block additions or removals, EK recommends pairing with EK-Pro GPU and CPU Quick Disconnect Kits. Its acetal body, stainless steel end caps, and nickel-plated brass plugs ensure durability. The included universal mounting system supports various setups with 120mm and 140mm fan mounting patterns.
Three design decisions worth calling out
20-Port Maximum-Capacity Layout
Twenty G1/4" ports distribute coolant across two CPU and eight GPU water blocks in parallel or semi-parallel configuration, representing the maximum block count in the EK-Pro passive manifold range.
Recommended QDC Pairing
EK recommends pairing with EK-Pro GPU and CPU Quick Disconnect Kits for individual block addition or removal without loop drain, critical for minimizing downtime in dense multi-GPU workstation environments.
Durable Acetal + Stainless Steel
POM acetal body with stainless steel end caps and nickel-plated brass plugs provides the chemical and mechanical durability required in continuously operating high-density compute systems.
Full datasheet

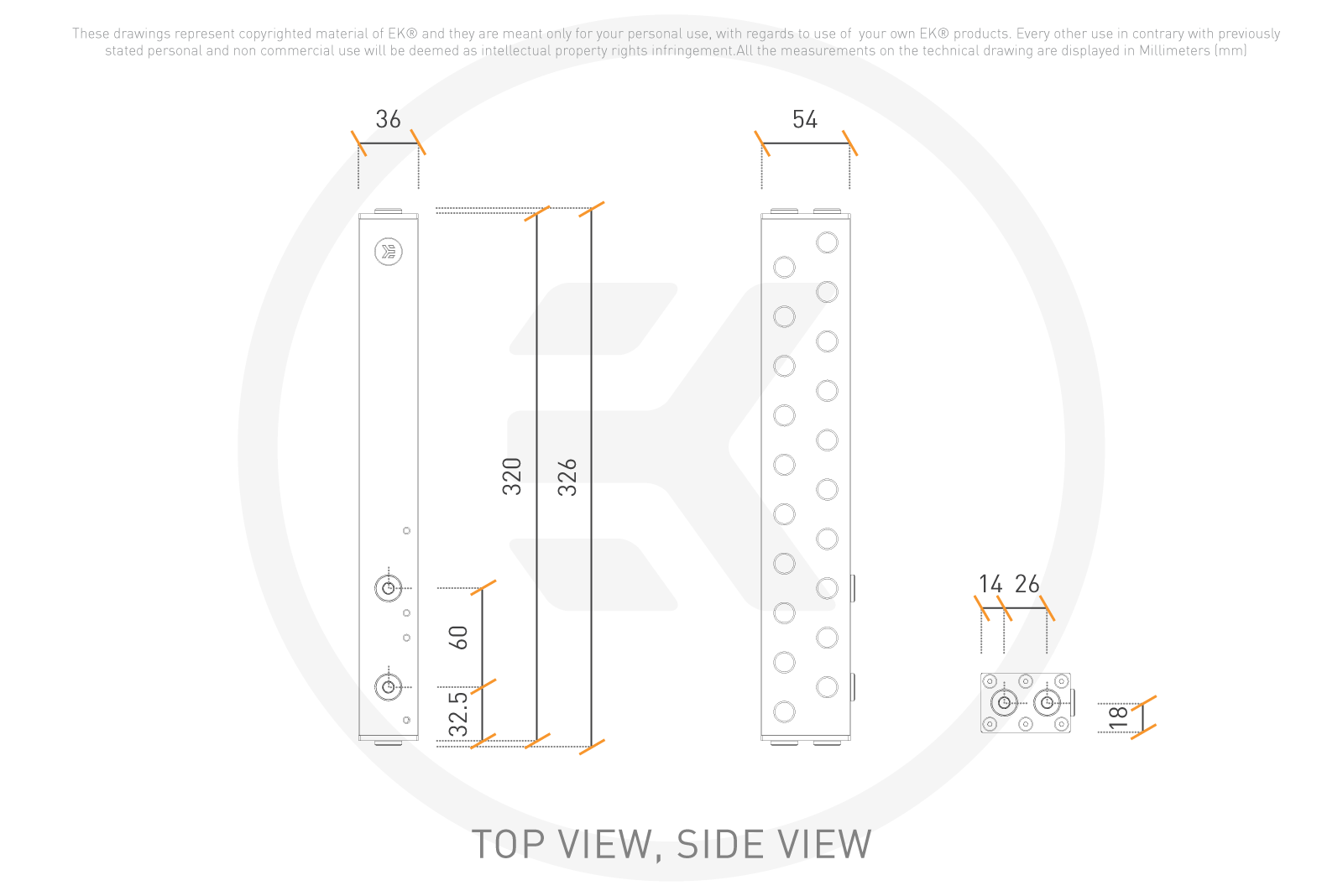

| Dimensions (L x H x W) | 326 x 57 x 36 mm (without the mounting system) |
| Materials | POM, stainless steel, nickel-plated brass |
| Mass | 0.873 kg |
| Ports | 20 x G1/4" – supports 2 x CPU and 8 x GPU water blocks |
| Mounting method | Manifold mounting plate |
| Working pressure | 2500 Pa |
| Maximal working pressure | 30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa |
| Operating temperature range | 5 – 60 °C |
All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.
Download resources
Product documentation for specification, integration, and installation is available below. Revision numbers are printed on page one of each file.
A CAD STEP file of the full block assembly is available to partners on request - contact LM TEK engineering before specifying at fleet scale.
System Compatibility
Supports up to two CPU and eight GPU water blocks with standard G1/4" ports. Compatible with EK-Pro Quick Disconnect Kits. Universal mounting plate supports 120mm and 140mm fan mount patterns.
Shipped contents
- · 1× EK-Pro Manifold 2CPU 8GPU - Acetal (pre-assembled)
- · 7× G1/4 Plugs
- · 1× Allen key 6mm
- · 1× Allen key 2,5mm
- · 1× Manifold mounting
- · 4× Screws M4 x 6mm DIN7984
