CPU water blocks,
for every socket worth running.
CPU water blocks for Intel Xeon and AMD EPYC, Threadripper, and Ryzen processors. Workstation form factor uses top-mounted G1/4″ ports for tower builds. 1U rack form drops to side-mounted G1/8″ ports for vertical clearance inside rack chassis. Nickel-plated copper base, POM Acetal top, EPDM O-rings throughout.
- 8
- SKUs in family
- 4
- AMD platform
- 4
- Intel platform
Two terminal layouts, one cold-plate engine.
Workstation
Top-mount G1/4″ ports
Top-terminal design with two G1/4″ threaded ports. Designed for tower and desk-side workstation builds where vertical clearance is generous and routing flexibility matters. Compatible with EK-Pro QDC kits and standard fittings throughout the catalogue.
Mounts directly under the chassis fan or pump-res header
Server rack
Side-mount G1/8″ ports
Rack-style terminal routes plumbing horizontally for 1U chassis clearance. Two G1/8″ side-mounted ports keep the block envelope flat against the motherboard. Pairs with EK-Pro QDC kits for single-block serviceability inside a populated rack chassis.
Compatible with 1U rack chassis at standard board height
AMD CPU water block
CPU WB sTR
Nickel + Acetal
- Compatibility
- AMD Socket sTRX4 (Socket SP3r3), AMD Socket TR4 (Socket SP3r2), AMD Socket SP3, AMD Socket sTR5, AMD Socket SP6
- Platform
- AMD
- Dimensions
- 116.8 x 78 x 22.2 mm
- Mounting
- Stainless-steel bracket
AMD CPU water block
EK-Pro CPU WB sTR Rack - Nickel + Acetal
- Compatibility
- AMD Socket sTRX4 (Socket SP3r3), AMD Socket TR4 (Socket SP3r2), AMD Socket SP3, AMD Socket sTR5, AMD Socket SP6
- Platform
- AMD
- Dimensions
- 116.8 × 85.37 × 26.2 mm
- Mounting
- Stainless-steel bracket
AMD CPU water block

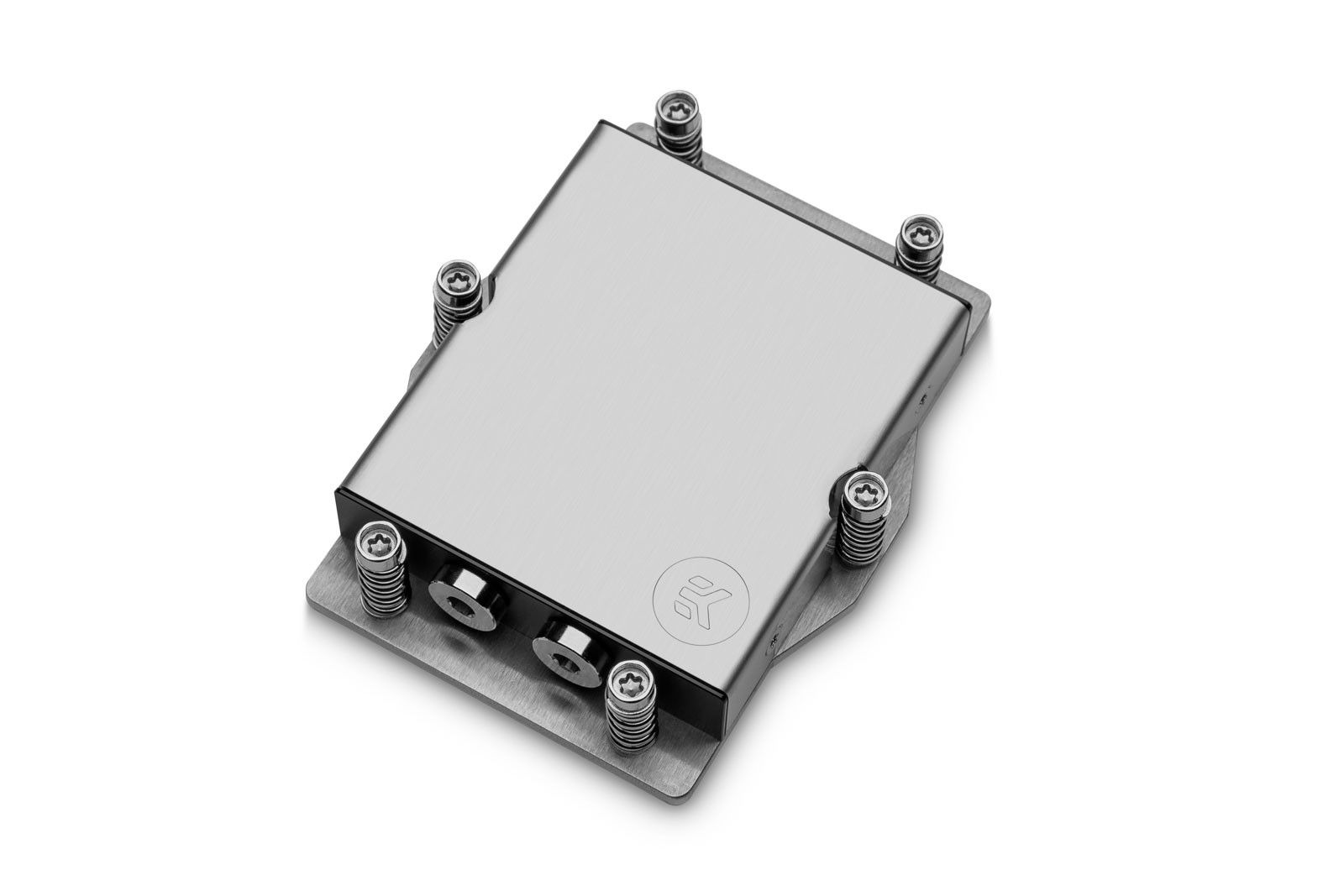

EK-Pro CPU WB SP5 Rack
- Compatibility
- AMD Socket SP5 (LGA 6096)
- Platform
- AMD
- Dimensions
- 116.8 × 92.4 × 22.2 mm
- Mounting
- Stainless-steel bracket
AMD CPU water block

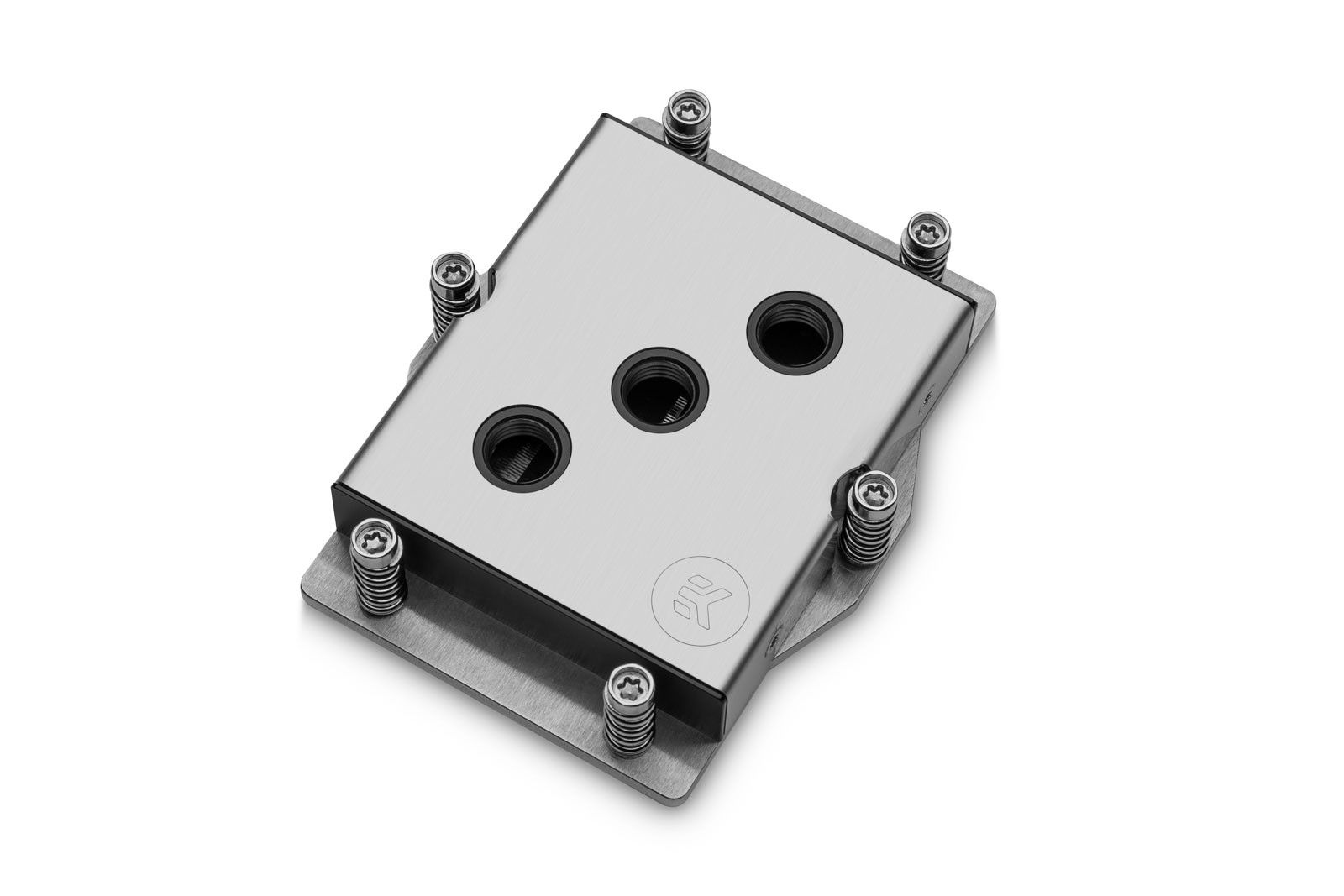

EK-Pro CPU WB SP5 Ni + Acetal
- Compatibility
- AMD Socket SP5 (LGA 6096)
- Platform
- AMD
- Dimensions
- 116.8 × 92.4 × 22.2 mm
- Mounting
- Stainless-steel bracket
Intel CPU water block

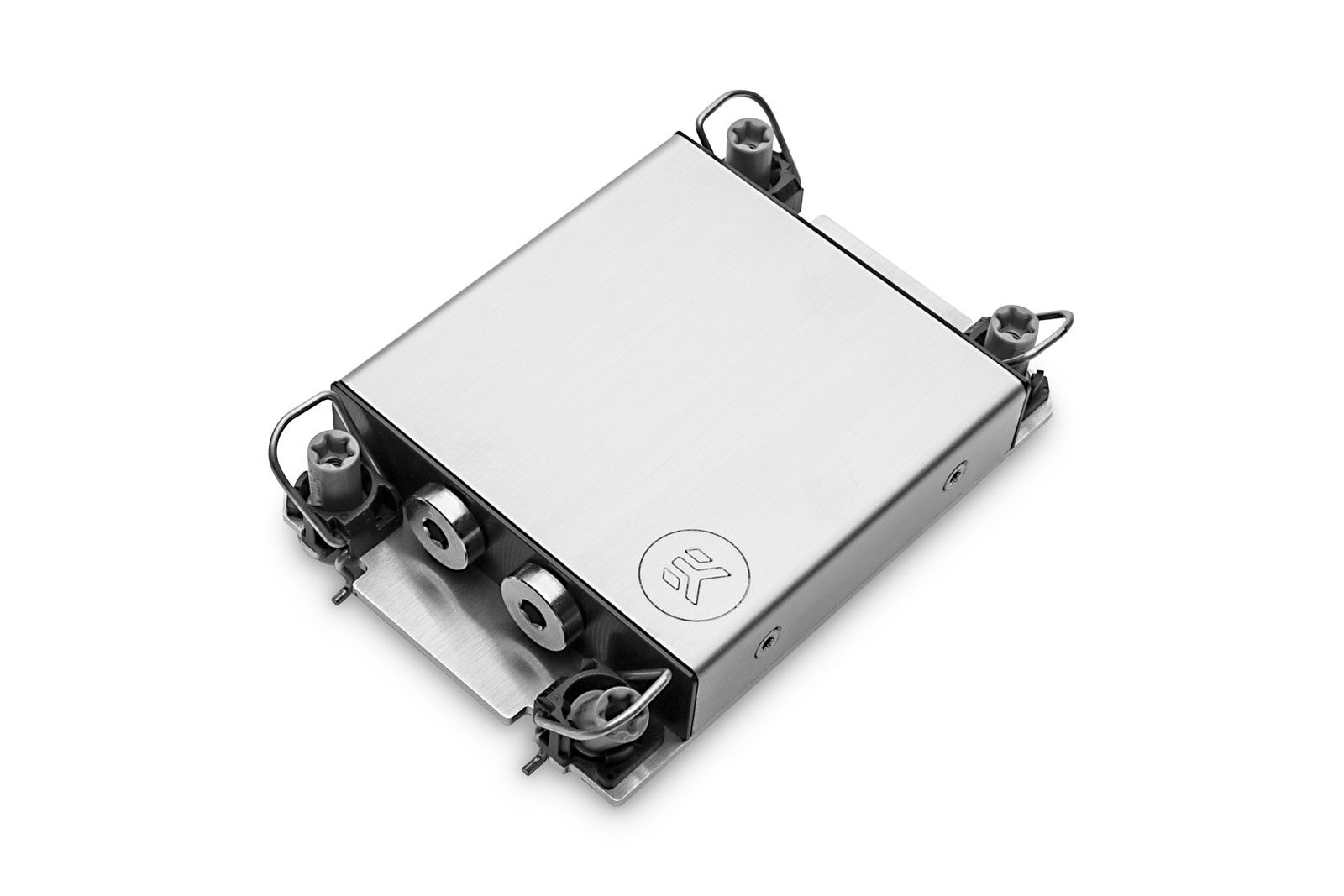

EK-Pro CPU WB 4677 Rack Ni + Acetal
- Compatibility
- LGA 4677
- Platform
- Intel
- Dimensions
- 118 × 78 × 22.2 mm
- Mounting
- Stainless-steel bracket
Intel CPU water block
EK-Pro CPU WB 4677 Ni + Acetal
- Compatibility
- LGA 4677
- Platform
- Intel
- Dimensions
- 118 × 78 × 22.2 mm
- Mounting
- Stainless-steel bracket
Intel CPU water block
EK-Pro CPU WB 4189 Rack
- Compatibility
- LGA 4189
- Platform
- Intel
- Dimensions
- 113 × 78 × 22.2 mm
- Mounting
- Stainless-steel bracket
Intel CPU water block

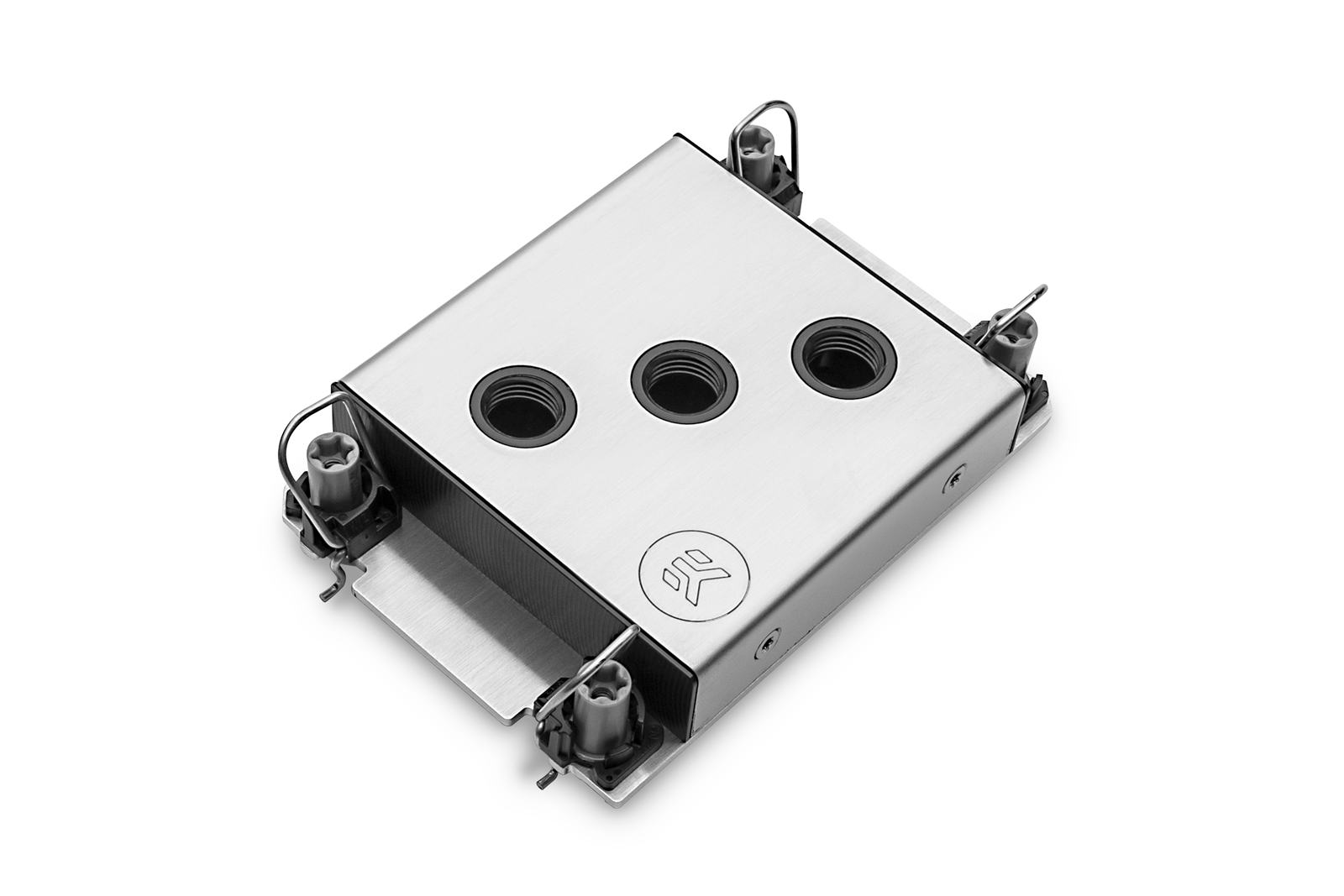

EK-Pro CPU WB 4189
- Compatibility
- LGA 4189
- Platform
- Intel
- Dimensions
- 113 × 78 × 22.2 mm
- Mounting
- Stainless-steel bracket
Every block in this family shares the following.
| Base material | Nickel-plated electrolytic copper - corrosion-resistant, compatible with mixed-metal loops. |
|---|---|
| Top material | POM Acetal - chemically resistant, dimensionally stable under operating temperature range. |
| Mounting bracket | Stainless steel · included in box · covers both socket generations per block SKU. |
| Ports | G1/4″ · top-mounted · integrates with EK-Pro QDC kits and manifolds. |
| Working pressure | 2 500 Pa working · 30 000 Pa max in loops with EK-Pro Pump Reservoir Manifold · 75 000 Pa max otherwise. |
| Country of origin | Manufactured in Komenda, Slovenia. |
Socket not on the list?
The catalogue covers the platforms our customers actually deploy. If you are working with a specific socket variant, multi-CPU board, or a chassis constraint that affects block clearance, tell us what's in the build - we'll confirm compatibility or design a variant.
