Manifolds,
the loop's wiring diagram, in metal.
Standalone coolant distribution manifolds for multi-GPU workstation builds. Four configurations: 2CPU + 2GPU, 2CPU + 4GPU, 2CPU + 6GPU, and 2CPU + 8GPU. POM Acetal body, G1/4″ ports throughout, fixed inlet-outlet routing — no compatibility surprises at integration time.
- 4
- SKUs in family
- 0
- PRM combos
- 0
- standalone manifolds
Compact loops or dense loops, same engine.
Compact
2CPU + 2GPU and 2CPU + 4GPU
Two-CPU manifolds for workstation builds with up to four GPU water blocks. Suits desk-side workstations and single-chassis professional builds. Mounts inside a tower chassis via standard captive-screw holes.
For dual-CPU workstation builds with up to 4 GPU
Dense
2CPU + 6GPU and 2CPU + 8GPU
Two-CPU manifolds for high-density GPU workstations and short-chassis rack builds. Sized for the deployment density typical in scientific visualisation, rendering, and AI inference workstations. Pairs with the X6 or X11 pump-reservoir-manifold combos.
For dense GPU workstations · 6-8 GPU water blocks
Manifold · distribution

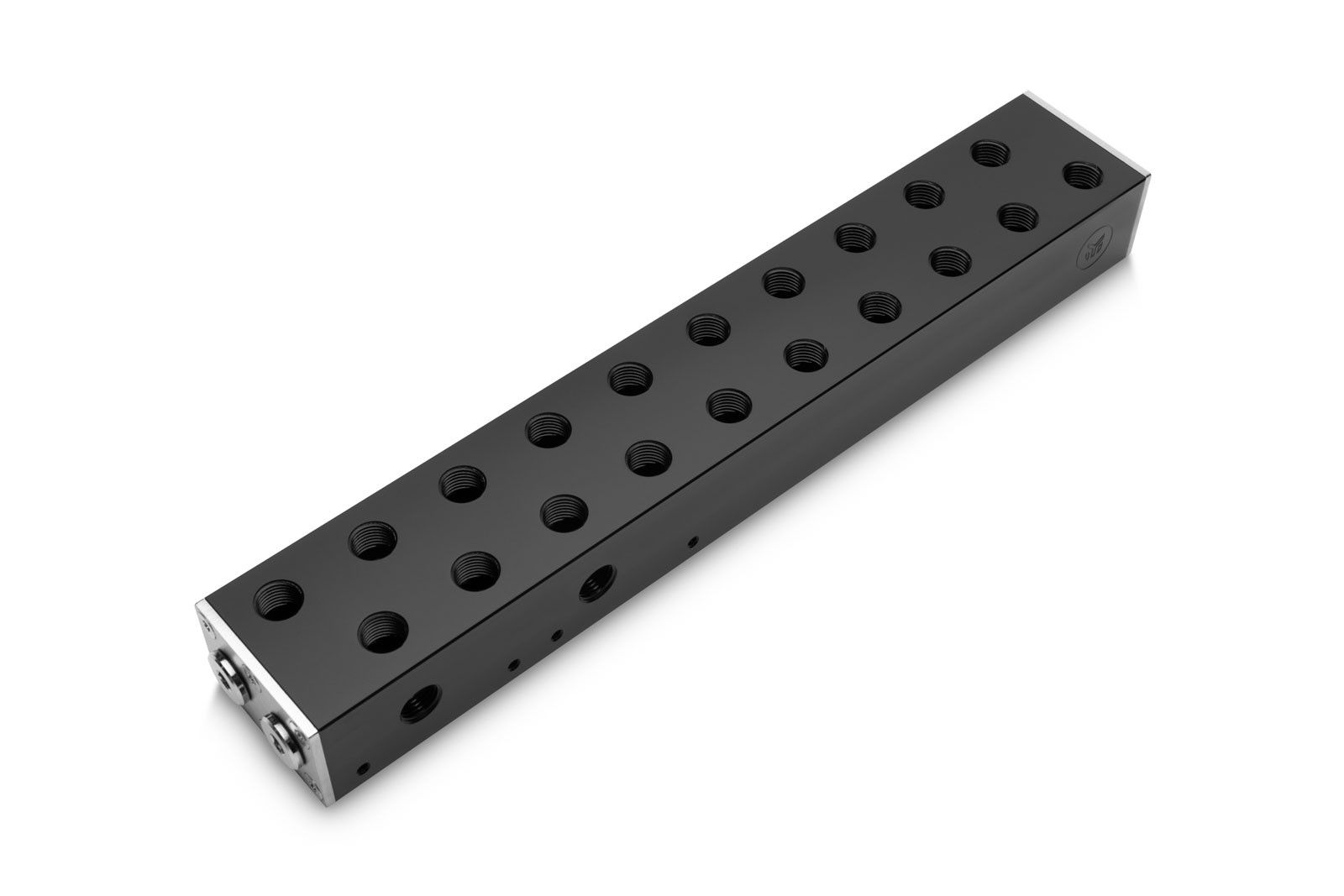

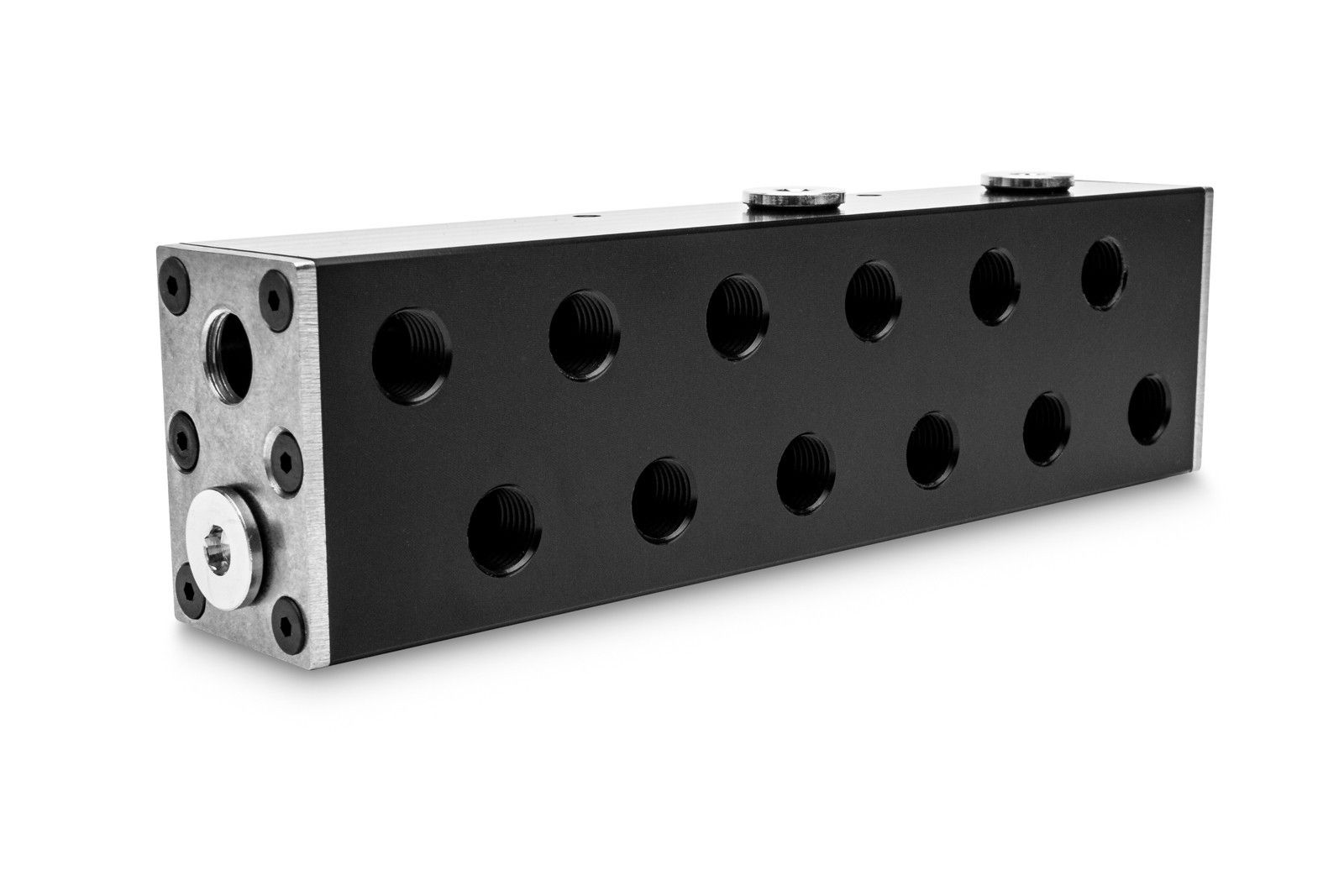

EK-Pro Manifold 2CPU 8GPU - Acetal
- Type
- -
- Ports
- 20
- Compatibility
- EK-Pro GPU and CPU water blocks with G1/4" ports
- EAN
- 3831109817209
Manifold · distribution

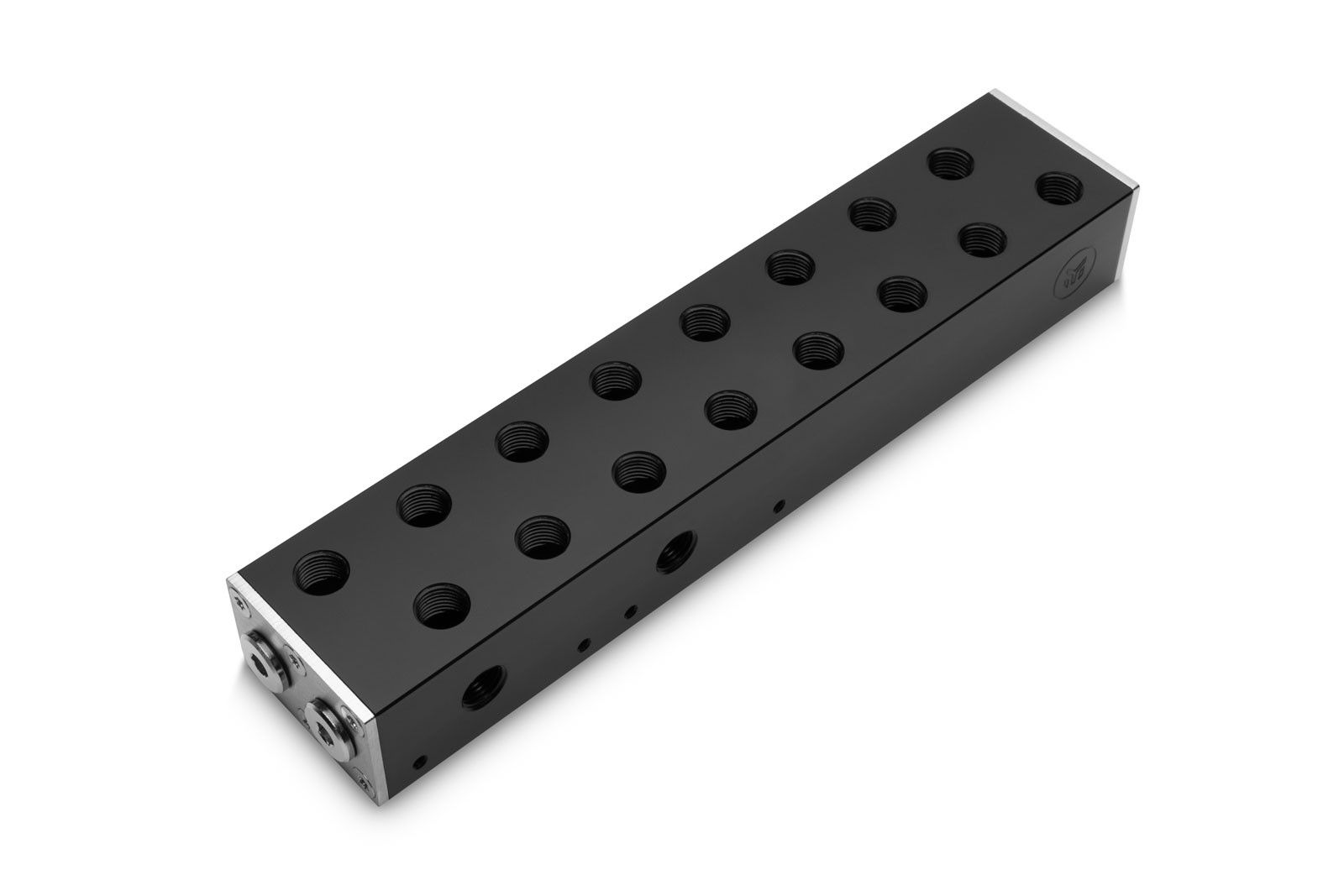

EK-Pro Manifold 2CPU 6GPU - Acetal
- Type
- -
- Ports
- 16
- Compatibility
- EK-Pro GPU and CPU water blocks with G1/4" ports
- EAN
- 3831109817261
Manifold · distribution
EK-Pro Manifold 2CPU 4GPU - Acetal
- Type
- -
- Ports
- 12
- Compatibility
- EK-Pro GPU and CPU water blocks with G1/4" ports
- EAN
- 3831109813485
Manifold · distribution

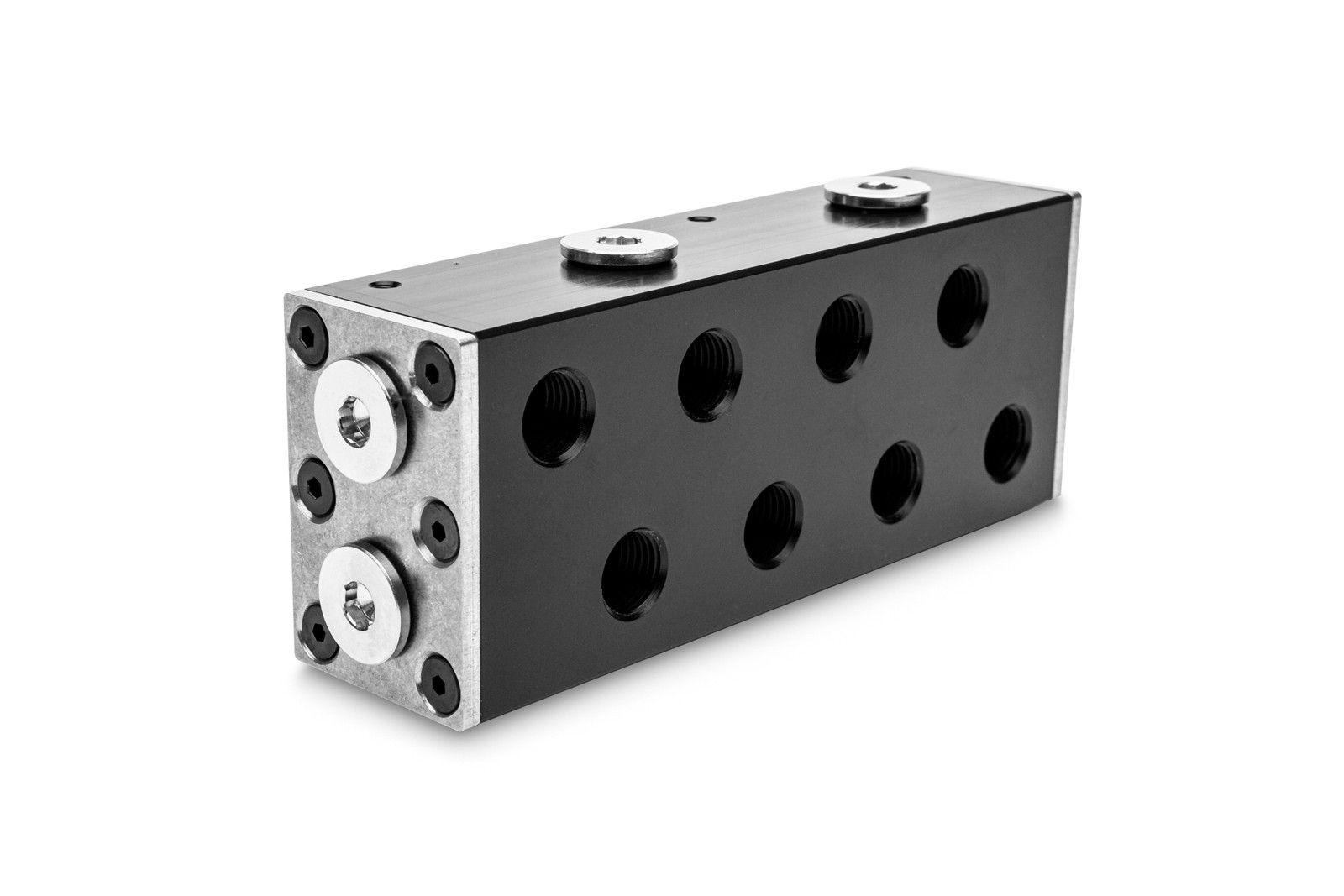

EK-Pro Manifold 2CPU 2GPU - Acetal
- Type
- manifold
- Ports
- 8
- Compatibility
- EK-Pro GPU and CPU water blocks with G1/4" ports
- EAN
- 3831109813492
Every unit in this family shares the following.
| Port standard | G1/4″ throughout · compatible with EK-Pro QDC kits and standard fittings. |
|---|---|
| Port pairs | Labelled CPU / GPU / radiator pairs · dedicated fill and drain ports on PRM combo units. |
| Body material | Black POM Acetal · chemically resistant · compatible with standard coolant chemistries. |
| Max working pressure (PRM loop) | 30 000 Pa - the published envelope for all EK-Pro water blocks in the same catalogue. |
| Mounting | M4 screw threads · included bracket with 105 mm hole spacing (120 mm fan-mount compatible). |
| Country of origin | Manufactured in Komenda, Slovenia. |
Sizing a multi-block loop?
X6 or X11, PRM combo or standalone - the right choice depends on block count, chassis geometry, and whether the chassis already has a pump-reservoir. Tell us the build and we'll confirm which unit fits and produce a full loop diagram.
