EK-Pro GPU WB RTX PRO 6000 Blackwell Nickel + Inox

Product EAN: 3831129901728

Compatibility: NVIDIA RTX™ PRO 6000 Blackwell Server Edition
NVIDIA RTX™ PRO 6000 Blackwell Max-Q Workstation Edition
Form factor: rack

Overview

RTX PRO 6000 Blackwell

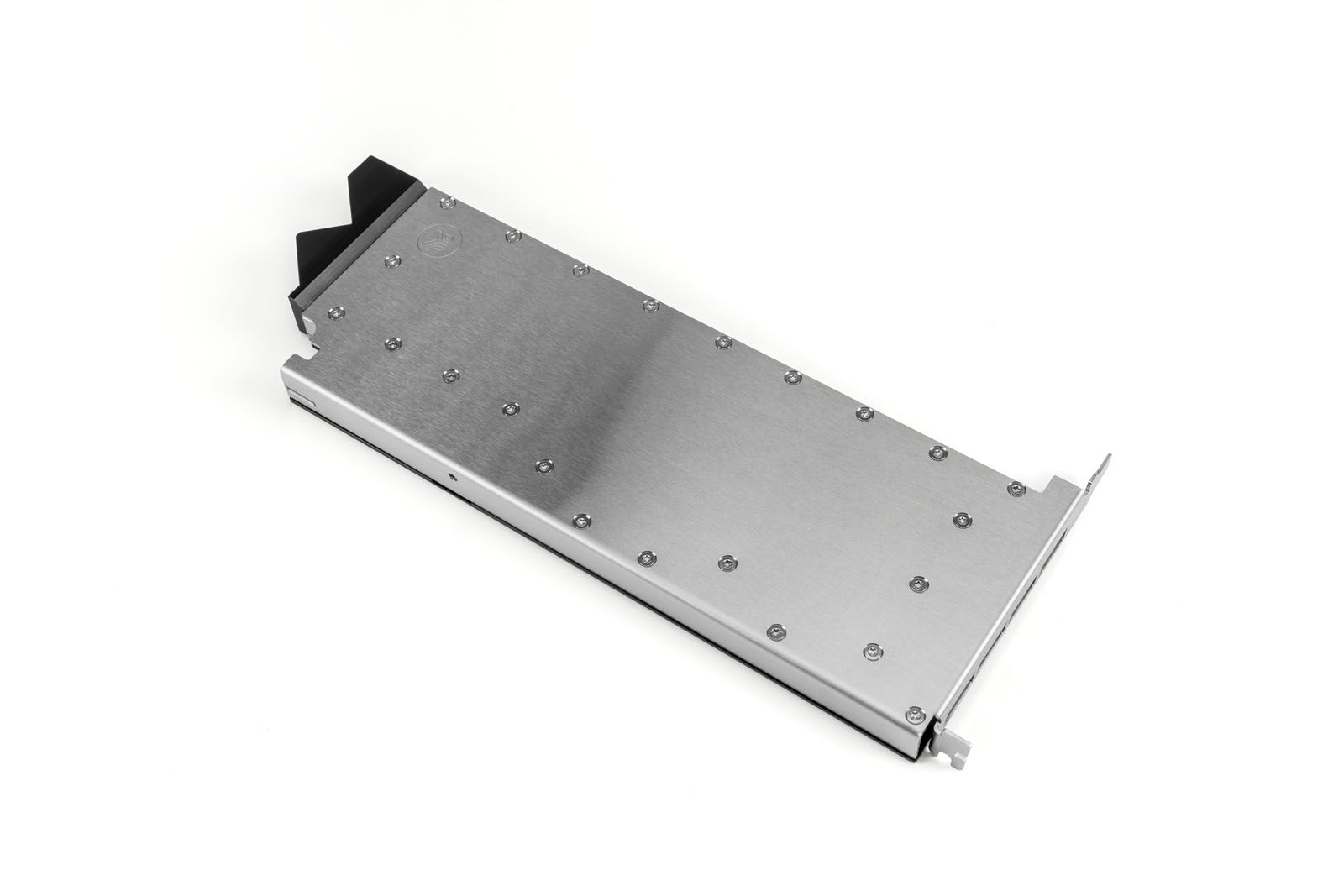

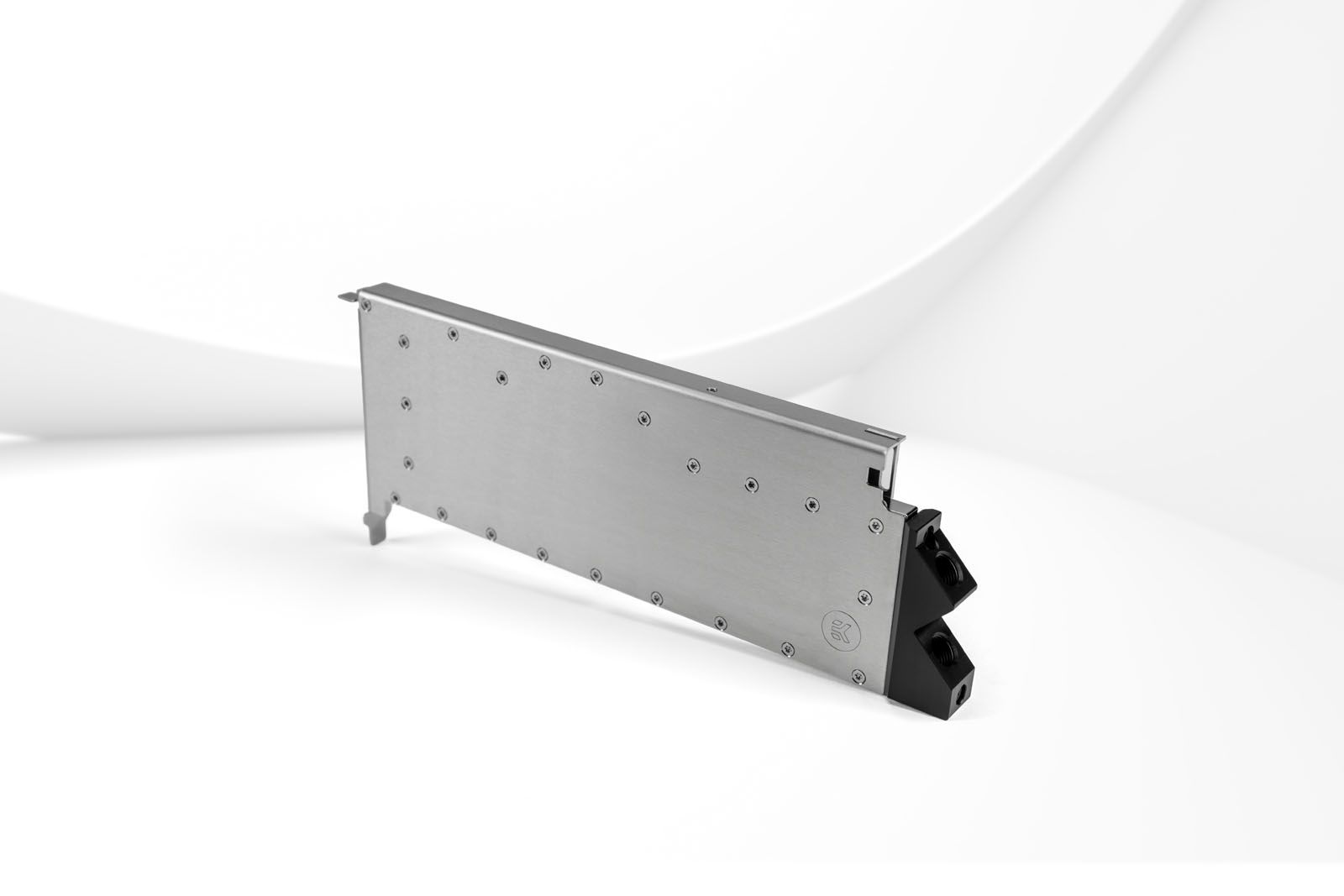

The EK-Pro GPU WB RTX PRO 6000 Blackwell Nickel + Inox is a water block for the NVIDIA RTX™ PRO 6000 Blackwell Server Edition. It occupies a single PCIe slot width and is designed for compact workstation and server chassis where adjacent slot clearance is a constraint.

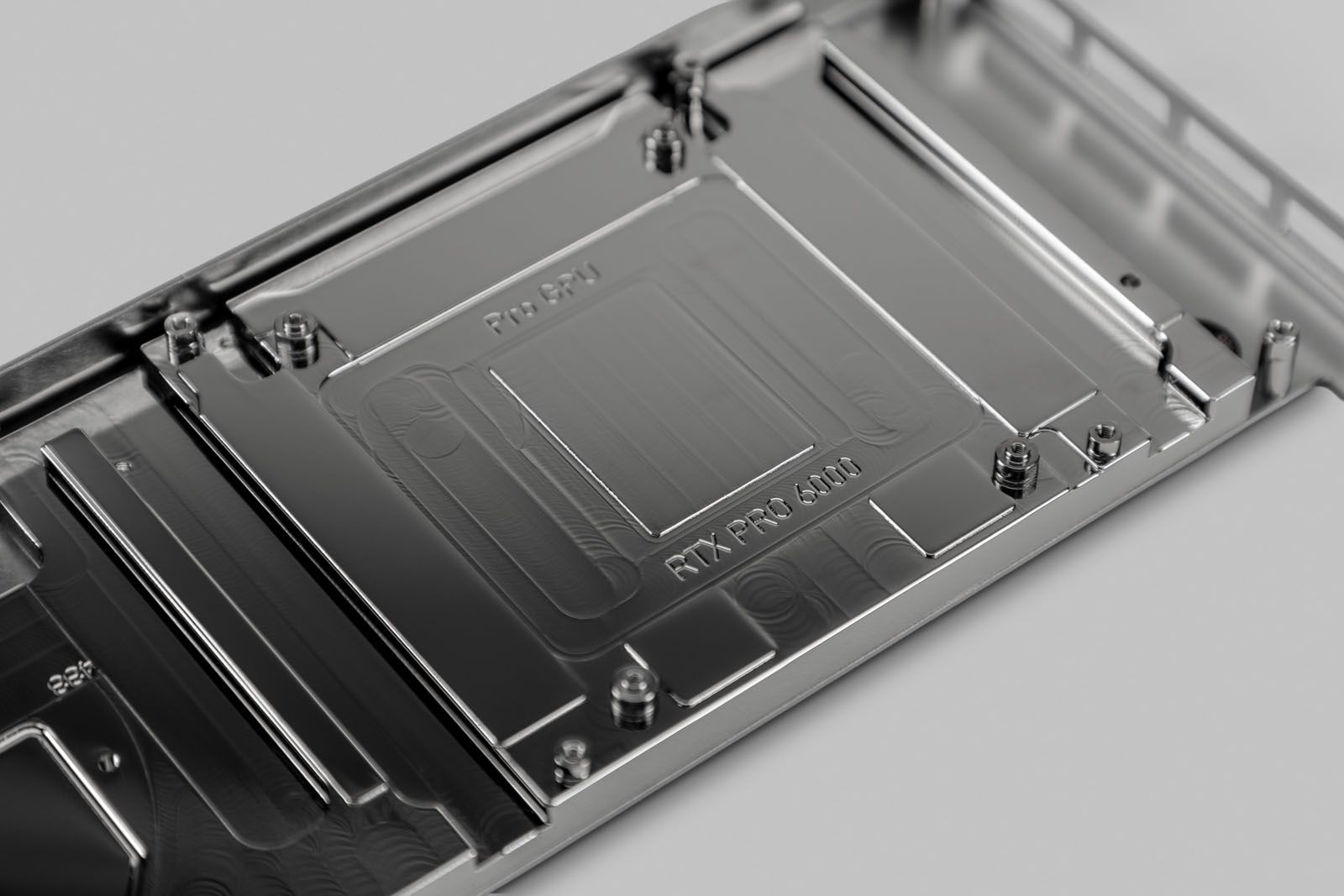

The block efficiently cools the GPU die, VRAM, and VRM with low hydraulic flow restriction, maintaining compatibility with weaker water pump setups. Construction uses a nickel-plated copper base and stainless-steel top with a POM Acetal terminal block carrying two G1/4″ ports.

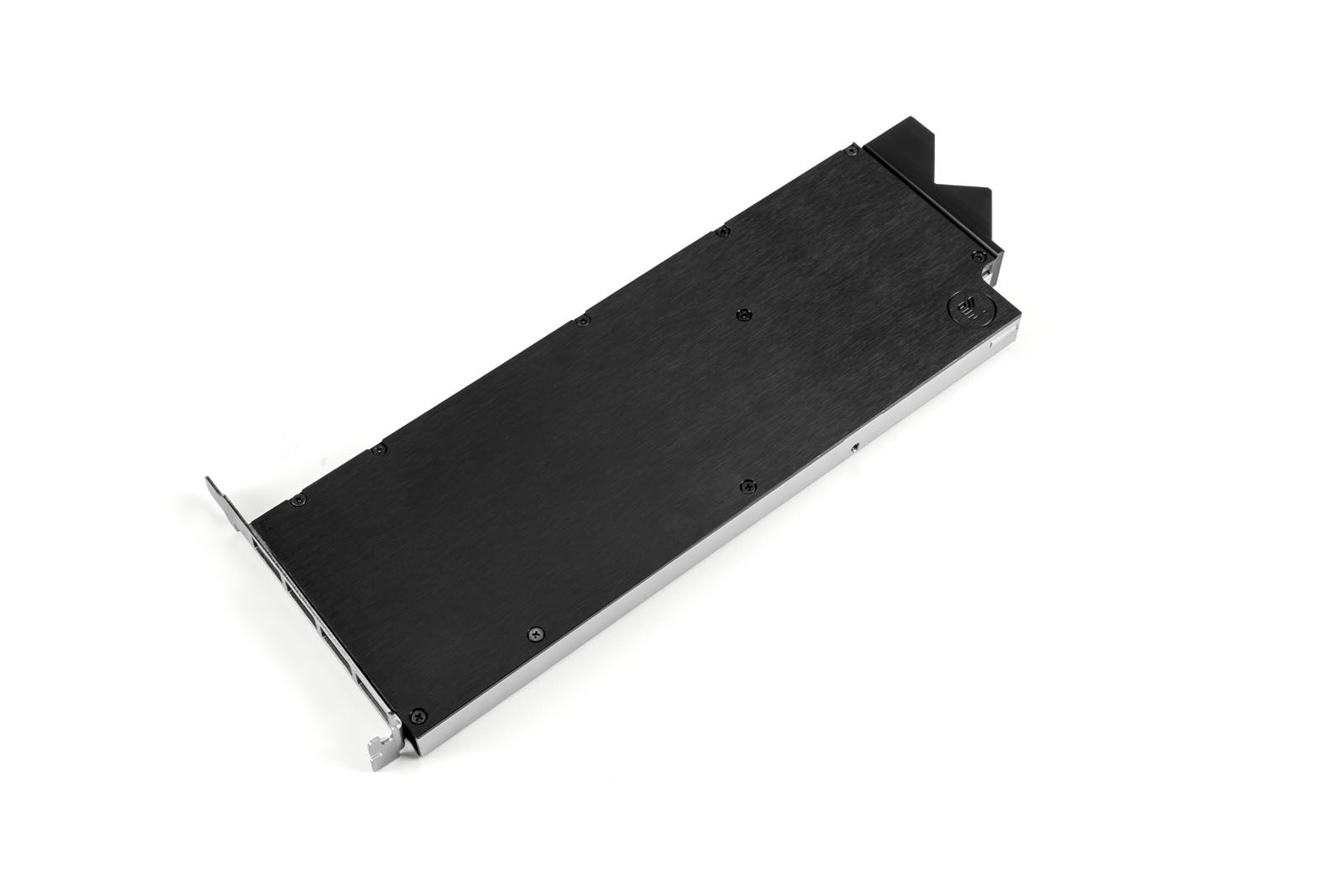

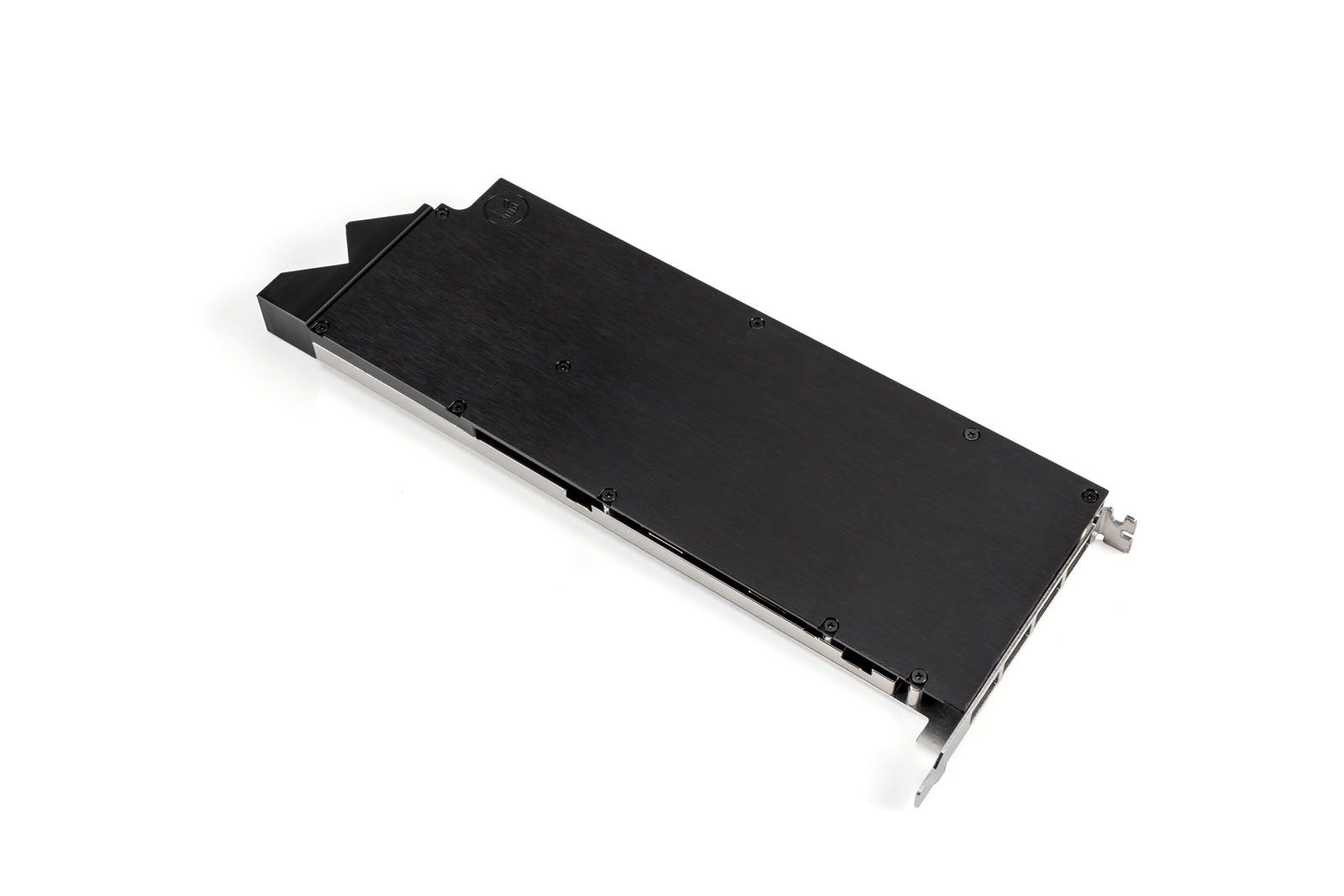

The retention backplate adds PCB rigidity and provides passive cooling to the VRM area. EPDM O-ring sealing is used throughout.

Key Engineering

Three design decisions worth calling out

Single-slot server edition profile

The block is machined to a 20 mm depth and single PCIe slot width, making it correct for Blackwell server edition cards deployed in chassis where two-slot clearance is not available. Full-cover contact across GPU die, VRAM, and VRM is maintained within the reduced form factor.

G1/4″ terminal block

Two G1/4″ ports on the POM terminal block provide direct integration with EK-Pro Quick Disconnect kits and the full manifold range. EPDM O-ring sealing and pre-installed brass standoffs are included. A retention backplate is pre-fitted.

Pressure envelope

Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are consistent across the GPU water-block family.

Technical data

Full datasheet

Compatibility	NVIDIA RTX™ PRO 6000 Blackwell Server Edition NVIDIA RTX™ PRO 6000 Blackwell Max-Q Workstation Edition
Form factor	Rack / compact workstation (single PCIe slot)
Dimensions	306 × 127 × 22 mm
Mass	1.163 kg
Ports	2 × G1/4″
Base material	Nickel-plated copper
Top material	Stainless steel
Terminal	POM Acetal

Seals	EPDM O-rings
Mounting method	Backplate
Working pressure	2 500 Pa
Max pressure (with EK-Pro PRM)	30 000 Pa
Max pressure (standalone)	75 000 Pa
Operating temperature	5 – 60 °C
EAN	3831129901728

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

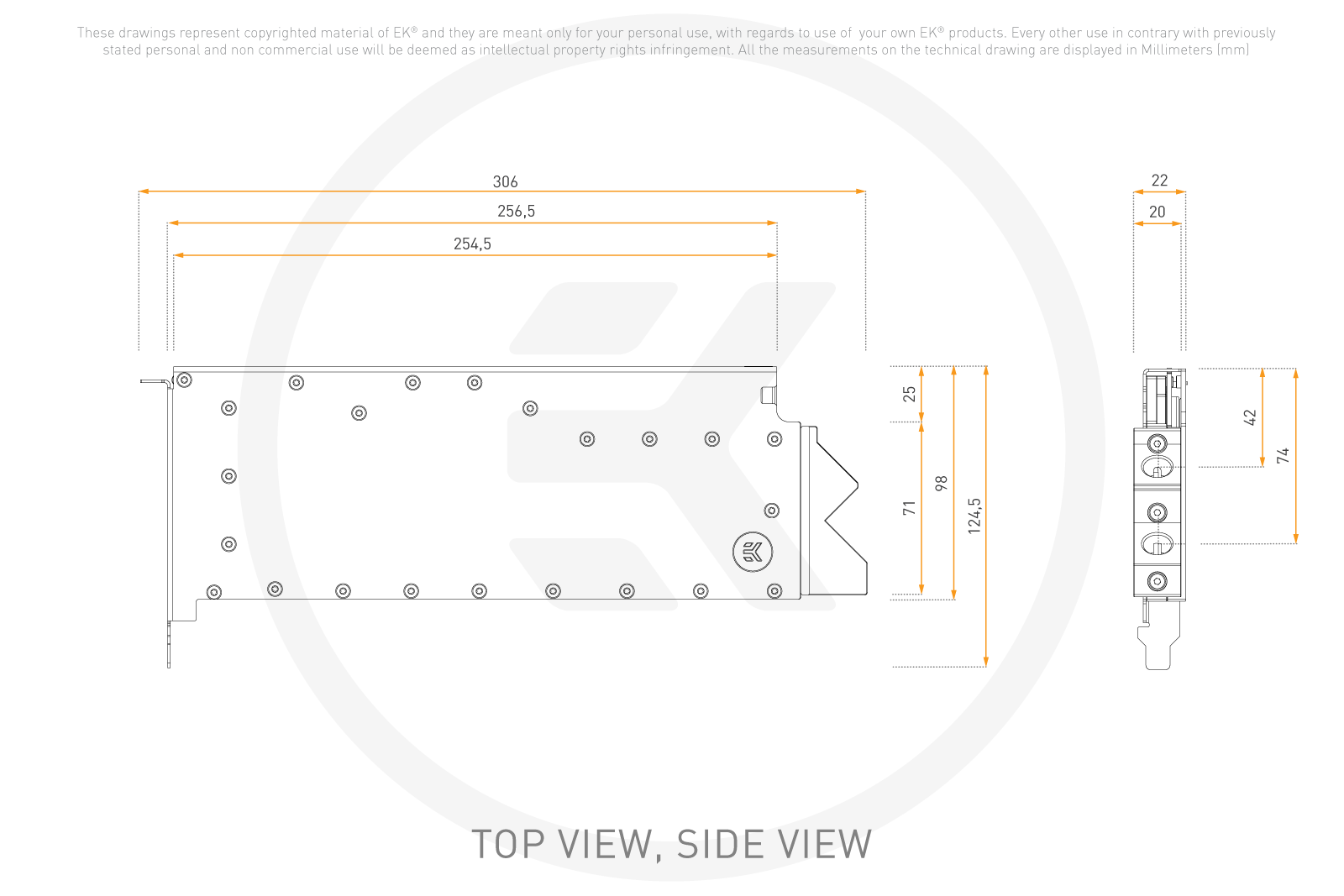

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

NVIDIA RTX™ PRO 6000 Blackwell Server Edition \n NVIDIA RTX™ PRO 6000 Blackwell Max-Q Workstation Edition

Contact Team

In the Box

Shipped contents

· EK-Pro GPU WB RTX PRO 6000 SE - workstation and server-grade water block
· Hybrid Backplate for cooling the backside VRAM
· Mounting mechanism with screw-in brass standoffs
· Necessary mounting screws, nuts, and washers
· Thermal Interface Material
