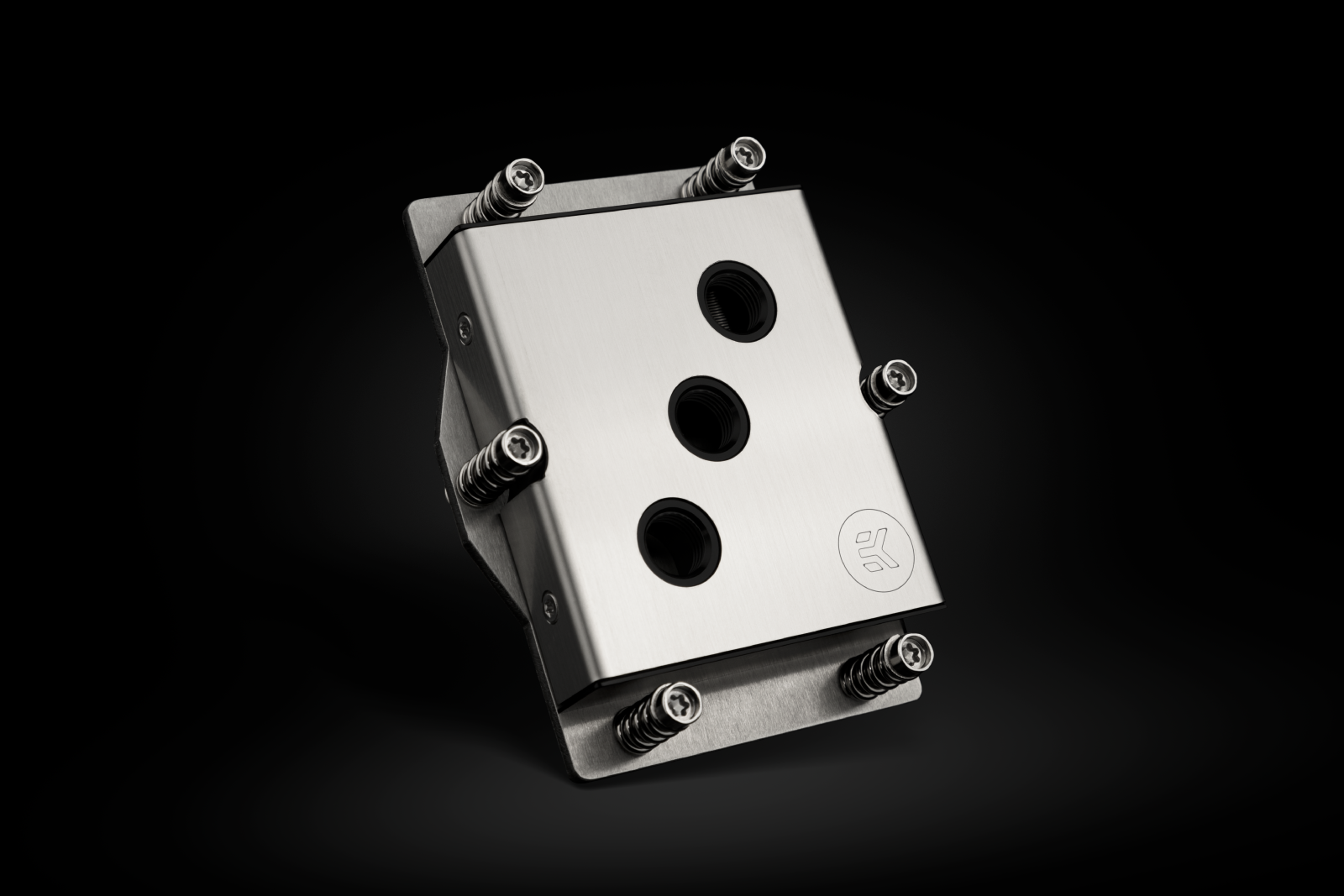

EK-Pro CPU WB SP5 Ni + Acetal

Product EAN: 3831109904077

Enterprise water block for AMD Socket SP5 processors including Genoa with up to 96 cores and 192 threads, with three G1/4" ports for dual-socket workstations and tall server racks.

Compatibility: AMD Socket SP5 (LGA 6096)
Platform: AMD

Overview

Liquid Cooling for AMD EPYC Genoa — Up to 96 Cores

The EK-Pro CPU WB SP5 Ni + Acetal is designed for AMD socket SP5-based processors, including the high-performance Genoa CPUs with up to 96 cores and 192 threads, boasting a TDP of 360W. Ideal for liquid cooling in dual-socket setups, it offers three G1/4" threaded ports and targets workstations and tall server racks.

This enterprise-grade water block prioritizes performance, reliability, and serviceability, featuring a pure copper base with nickel electroplating for optimal thermal performance. The top is CNC machined from durable black POM Acetal, and the bracket is laser-cut stainless steel, ensuring unparalleled connectivity and cooling for high-density computing systems.

Liquid Cooling for AMD EPYC Genoa — Up to 96 Cores

Key Engineering

Three design decisions worth calling out

Rated for 360W AMD EPYC Genoa

Engineered specifically for the LGA 6096 socket footprint and the elevated TDP of AMD EPYC Genoa CPUs, including dual-socket deployments with per-socket TDPs up to 360W.

Three Top-Mounted G1/4" Ports

Triple port configuration provides inlet, outlet, and bleed options for straightforward loop integration in tall rack and tower workstation chassis.

CNC Copper + Stainless Steel Bracket

Pure copper base with nickel electroplating, CNC-machined POM Acetal top, and laser-cut stainless steel hold-down bracket ensure mechanical reliability over extended service life.

Technical data

Full datasheet

Dimensions (L x H x W)	116.8 x 92.4 x 22.2 mm
Materials	Nickel-plated copper, stainless steel, POM
Mass	0.582 kg
Ports	3 x G1/4"

Mounting method	T20 Torx
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

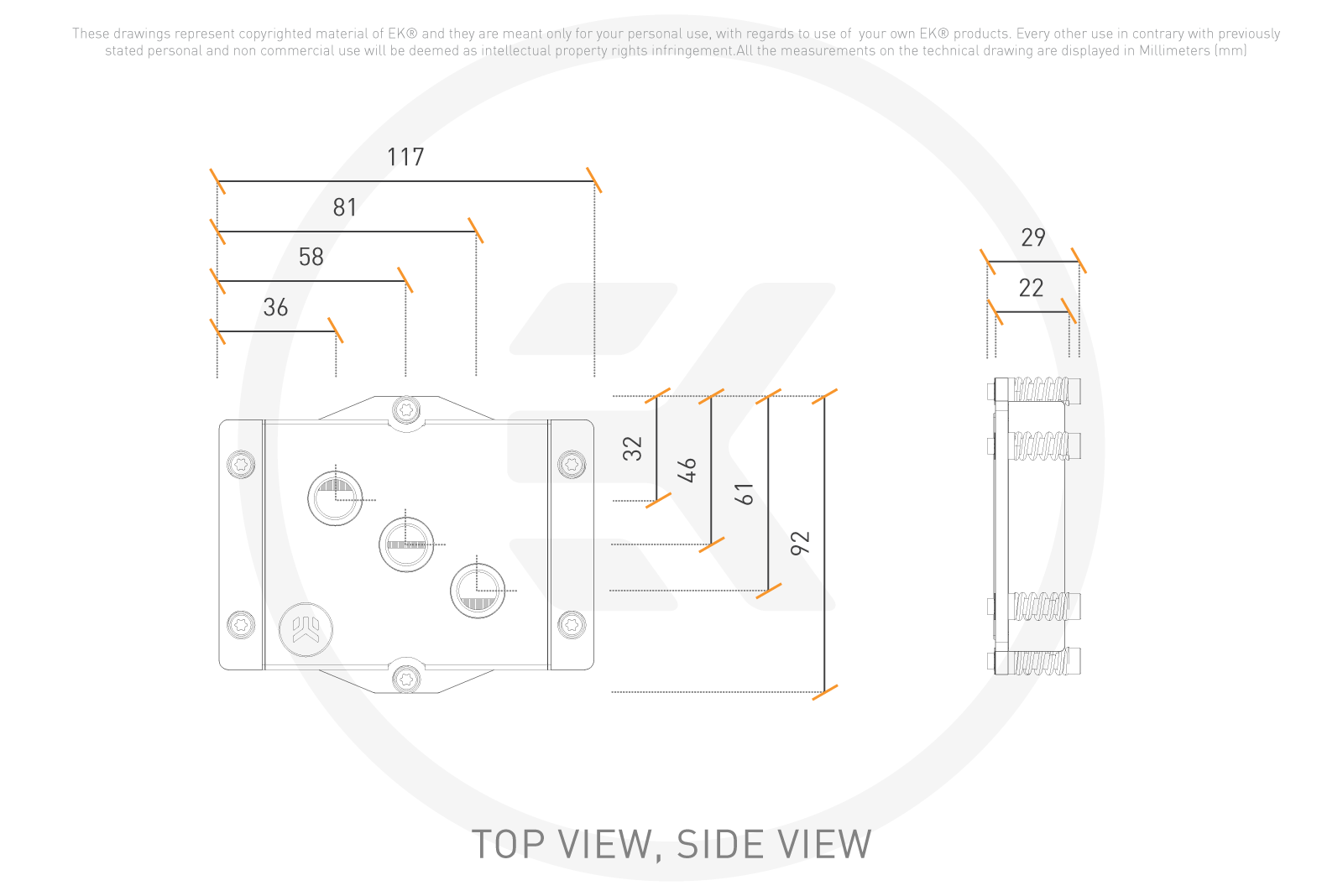

Technical drawing

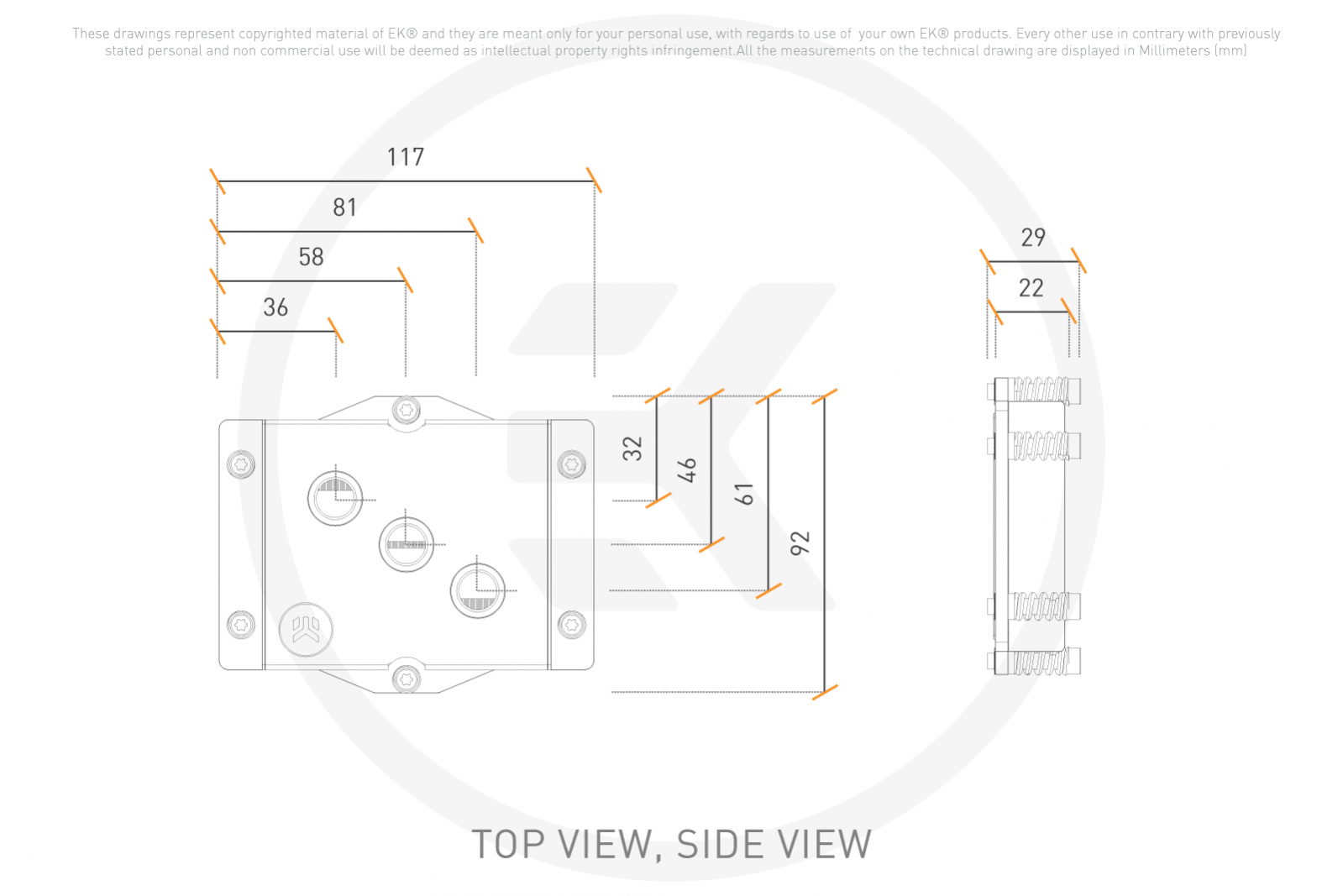

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible with AMD Socket SP5 (LGA 6096), including AMD EPYC Genoa processors with up to 96 cores and 192 threads. Suitable for dual-socket server and workstation systems in tall chassis configurations.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB SP5 Ni + Acetal water block
· 1x EK plug G 1/4”
· EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
· 1x Torx T30 Key - 1x 5mm Allen Key
· Thermal grease (1g)

Purpose-Built Cooling for AMD EPYC SP5 Platforms

Combine with EK-Pro manifolds and QDC kits for scalable, serviceable liquid cooling across dual-socket AMD EPYC server deployments.
