EK-Pro Manifold 2CPU 2GPU - Acetal

Product EAN: 3831109813492

Purpose-built coolant distribution manifold for workstation systems, supporting two CPU and two GPU water blocks in a semi-parallel setup with universal chassis mounting.

Type: manifold
Ports: 8

Overview

Centralized Coolant Distribution for 2-CPU 2-GPU Workstations

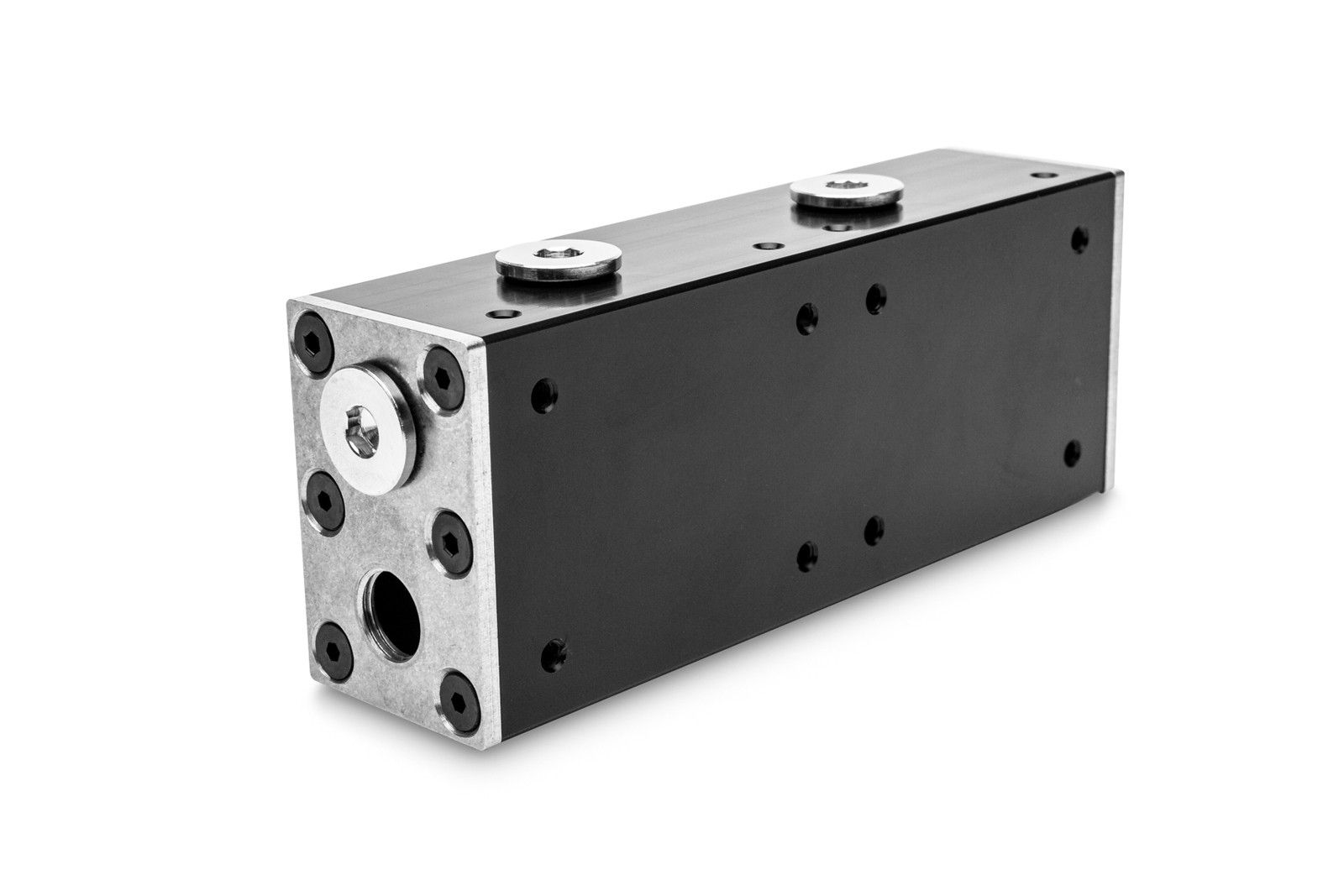

The EK-Pro Manifold is a purpose-built coolant distribution system for workstation systems, supporting two CPU and two GPU water blocks. It facilitates easy addition or removal of water blocks without draining the entire loop, reducing downtime.

Made with a full acetal body, stainless steel end caps, and nickel-plated brass plugs, it comes pre-assembled for a semi-parallel setup. Universal mounting system with 120mm and 140mm fan mounting patterns included.

Centralized Coolant Distribution for 2-CPU 2-GPU Workstations

Key Engineering

Three design decisions worth calling out

8-Port Semi-Parallel Layout

Eight G1/4" ports pre-configured for two CPU and two GPU water blocks in a semi-parallel flow arrangement, delivering balanced coolant pressure across all connected components.

Block Addition Without Loop Drain

Compatible with EK-Pro Quick Disconnect Kits (sold separately) to allow individual water block removal and reinstallation without draining or depressurizing the full cooling loop.

Full Acetal Body + Stainless Steel Caps

POM acetal body with stainless steel end caps and nickel-plated brass plugs ensures chemical compatibility with all standard water cooling fluids and long-term structural integrity.

Technical data

Full datasheet

Dimensions (L x H x W)	146 x 57 x 36 mm (without the mounting system)
Materials	POM, stainless steel, nickel-plated brass
Mass	0.449 kg
Ports	8 x G1/4" – supports 2 x CPU and 2 x GPU water blocks

Mounting method	Manifold mounting plate
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Compatibility

System Compatibility

Designed for workstation systems with up to two CPU and two GPU water blocks using standard G1/4" ports. Compatible with EK-Pro CPU and GPU Quick Disconnect Kits for tool-free block servicing. Universal mounting plate supports 120mm and 140mm fan mount patterns.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro Manifold 2CPU 2GPU - Acetal (pre-assembled)
· 7× G1/4" port plugs
· 1× Allen key 6mm
· 1× Allen key 2.5mm

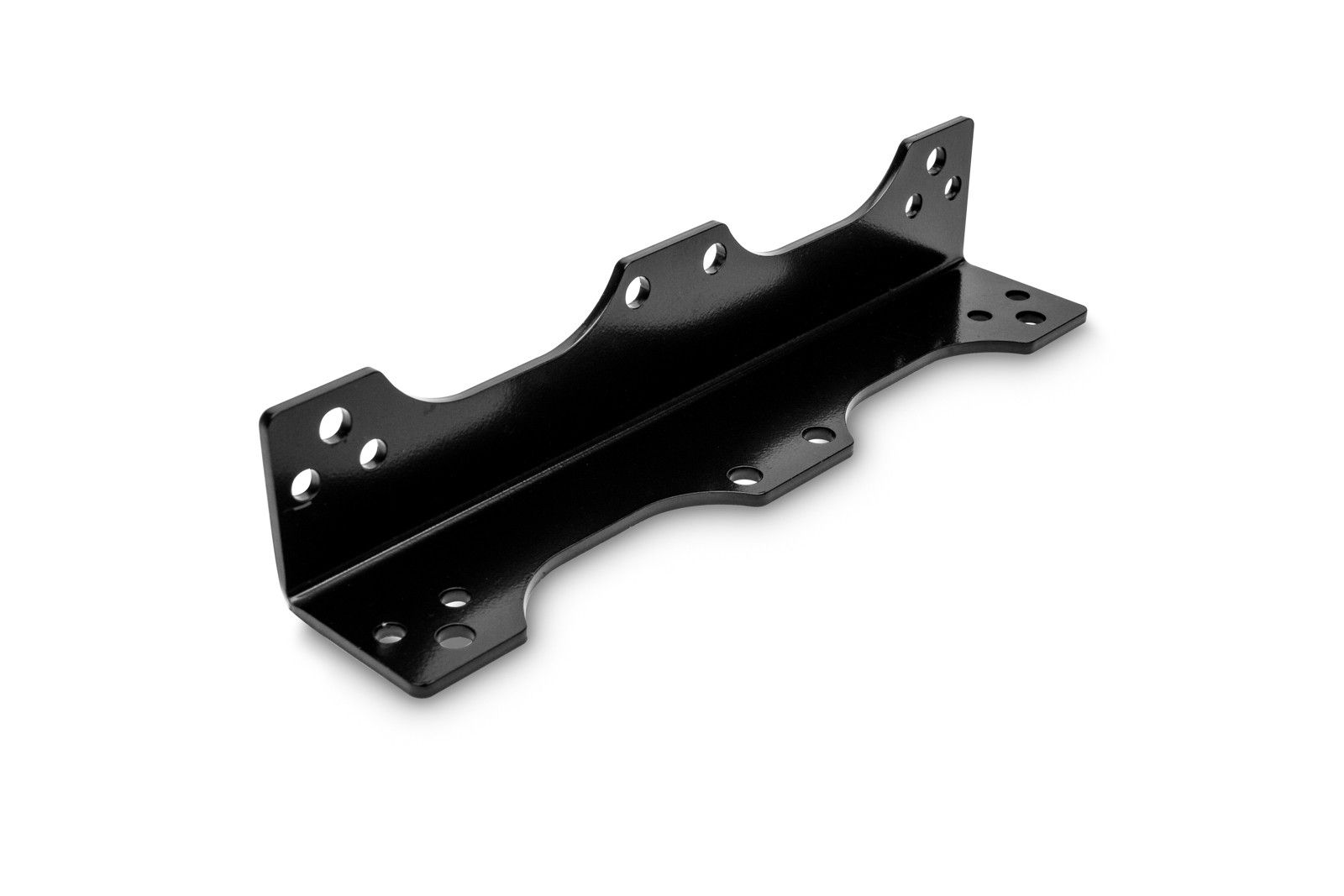

· 1× Manifold mounting
· 4× Screws M4 x 6mm DIN7984

Centralized Coolant Distribution for Dual-CPU Dual-GPU Workstations

Pair with EK-Pro CPU and GPU Quick Disconnect Kits and a Pump Reservoir Manifold for a fully serviceable, high-performance liquid cooling loop.
