EK-Pro GPU WB RTX A6000 Nickel + Inox
Product EAN: 3831109894453- Compatibility
- NVIDIA RTX™ A6000
- Form factor
- workstation
RTX A6000

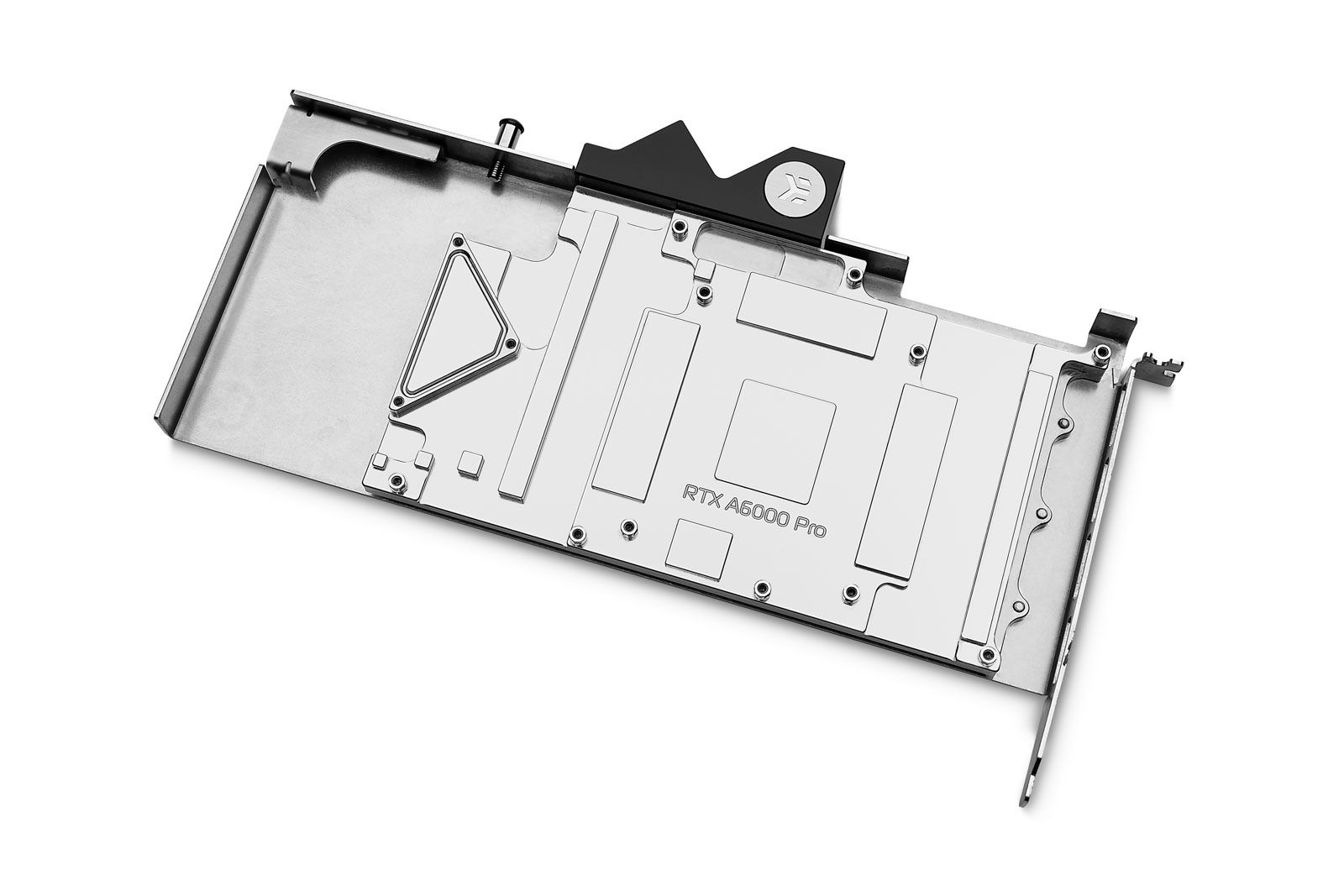

The EK-Pro GPU WB RTX A6000 Nickel + Inox is a full-cover water block for the NVIDIA RTX™ A6000 graphics card, providing comprehensive cooling for the GPU die, VRAM, and VRM under a single Open Split-Flow cooling engine. Low hydraulic flow restriction maintains compatibility with modest pump setups.
Construction is CNC-machined nickel-plated electrolytic copper base and stainless-steel top with EPDM O-ring sealing and pre-installed brass standoffs. An integrated I/O plate maintains card rigidity during transport and deployment cycles. The retention backplate provides structural rigidity and passive cooling to the PCB VRM area.
The 45° angled terminal block carries two G1/4″ ports for integration with EK-Pro QDC kits and manifolds. A side-mounted standoff provides a brace point for chassis-movement applications. Manufactured in Komenda, Slovenia.
Three design decisions worth calling out
Open Split-Flow
The Open Split-Flow geometry divides the coolant path symmetrically over the die face before recombining it downstream. This produces an even pressure profile across the GPU silicon, VRAM, and VRM zones, with low hydraulic restriction that is compatible with a wide range of pump specifications.
45° angled terminal · integrated I/O plate
The 45° angled terminal block routes G1/4″ ports away from the adjacent PCIe slot. The integrated I/O plate keeps the card assembly rigid during transport. A side-mounted standoff provides an additional brace point for chassis-movement applications where vibration loading is a concern.
Pressure envelope
Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are published at the supplier level and are consistent across the GPU water-block family.
Full datasheet
| Compatibility | NVIDIA RTX™ A6000 |
| Form factor | Full-height workstation (PCIe, single slot) |
| Dimensions | 252.9 × 153 × 22.3 mm |
| Mass | 1.291 kg |
| Ports | 2 × G1/4″ |
| Base material | Nickel-plated electrolytic copper |
| Top material | Stainless steel |
| Terminal | POM Acetal, 45° angled |
| Seals | EPDM O-rings |
| Mounting method | Backplate |
| Working pressure | 2 500 Pa |
| Max pressure (with EK-Pro PRM) | 30 000 Pa |
| Max pressure (standalone) | 75 000 Pa |
| Operating temperature | 5 – 60 °C |
| EAN | 3831109894453 |
All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.
Top & side view, in millimetres
Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.
These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.
Shipped contents
- · EK-Pro GPU WB RTX A6000 - Nickel + Inox workstation and server-grade water block

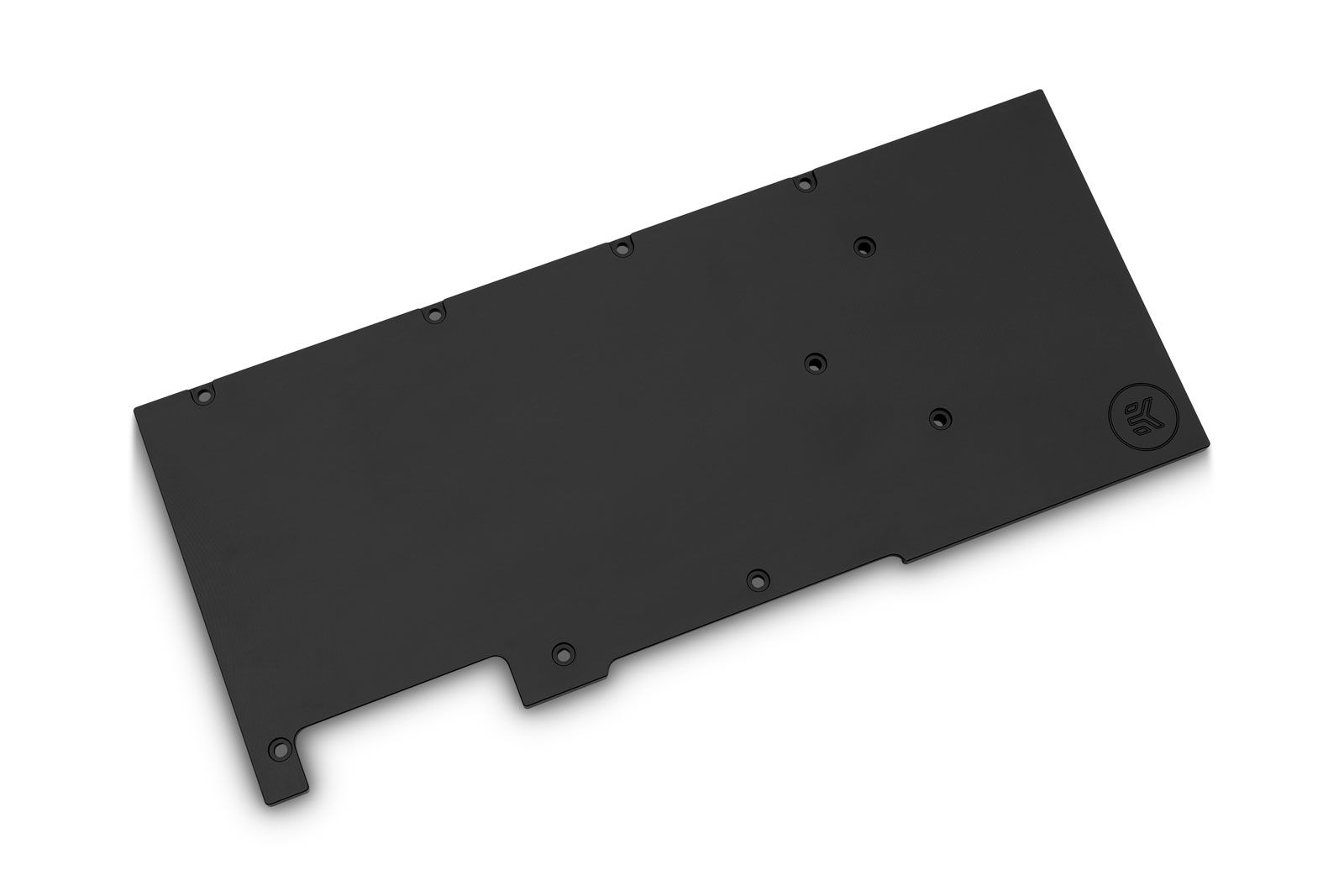

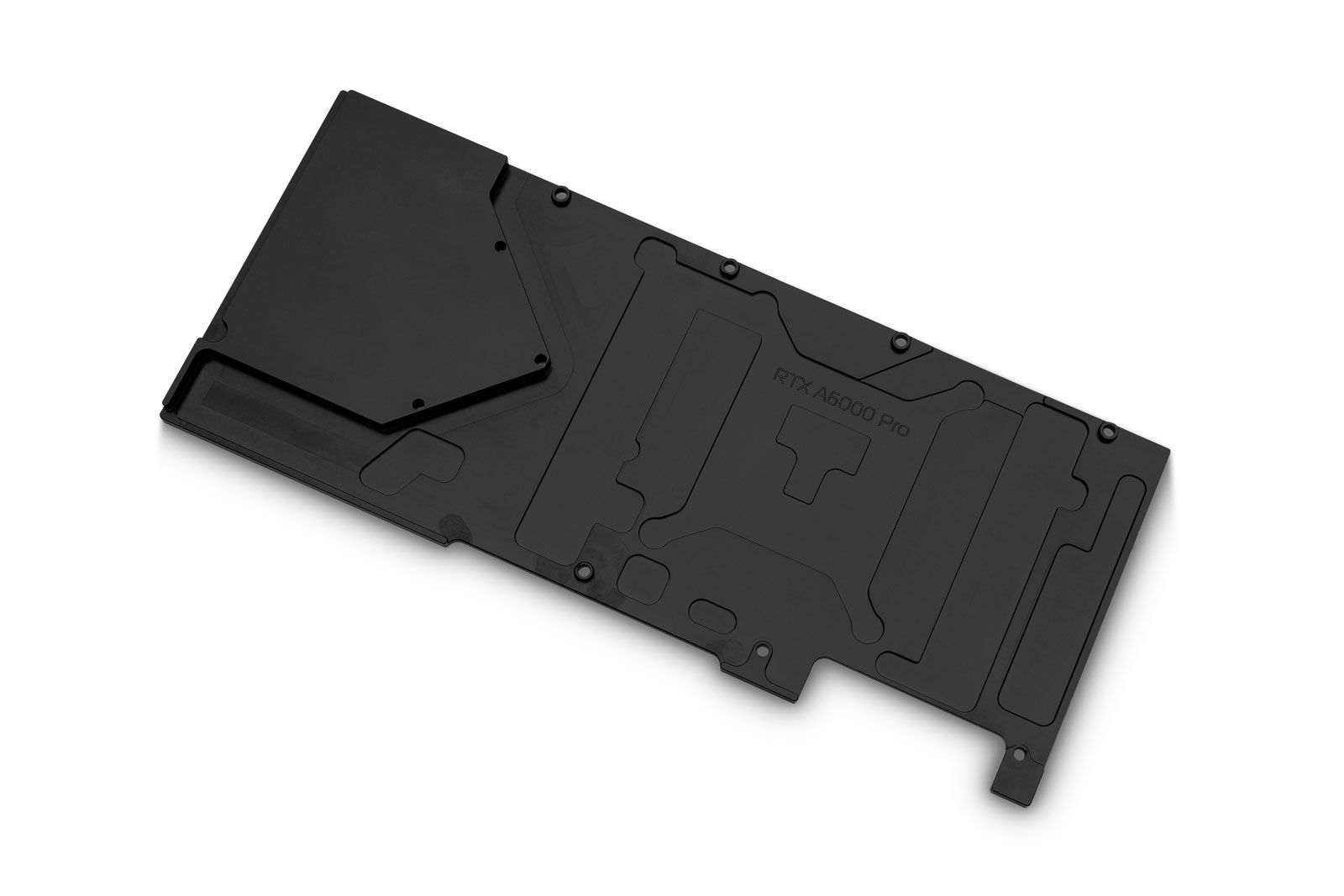

- · Retention backplate
- · Mounting mechanism with screw-in brass standoffs
- · Necessary mounting screws, nuts, and washers
- · Thermal Interface Matherial
