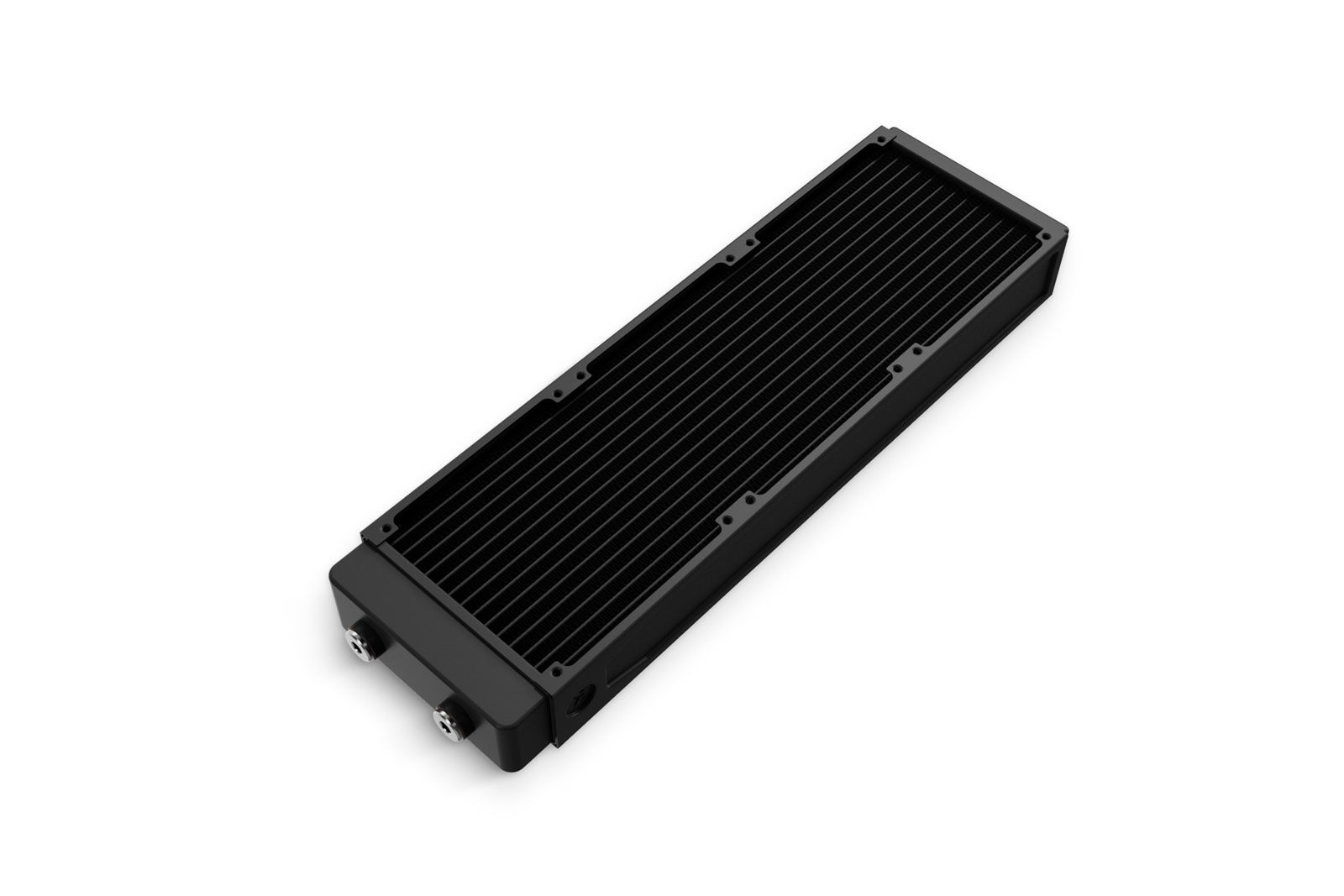

EK-Pro Radiator P360 Multiport - Black

Product EAN: 3831109910078

45mm thick 360mm radiator with four G1/4" ports, 14 copper tubes, and 18 FPI copper fins for high-performance, low-noise liquid cooling in server and workstation loops.

Size: 360mm
Fan size: 120 mm

Overview

Low-Noise, High-Performance 360mm Radiator for Enterprise Loops

The EK-Pro P Series radiators, at 45mm thickness, excel in low noise and high performance with four G1/4" threaded ports for versatile loop planning. Featuring 14 2mm-wide copper tubes, it ensures optimal coolant flow and minimal stress on the loop.

High-grade copper fins with 18 FPI density balance thermal transfer and air resistance, even at low fan speeds. Its Push/Pull setup maximizes cooling performance. The radiator is precisely 120mm wide for compatibility and features additional ports for flexible tube routing.

Low-Noise, High-Performance 360mm Radiator for Enterprise Loops

Key Engineering

Three design decisions worth calling out

18 FPI Non-Louvered Copper Fins

High-grade 99.9% copper fins at 18 FPI density strike an optimal balance between thermal transfer efficiency and airflow restriction, enabling low-noise operation across the full fan speed range.

14 x 2mm Copper Tubes

Fourteen 2mm-wide copper tubes distribute coolant evenly across the full radiator width, minimizing pressure drop and reducing loop stress on pump assemblies.

Four G1/4" Multiport Layout

Additional ports beyond the standard inlet/outlet pair allow for bleed port use and flexible tube routing in multi-radiator or complex manifold-based loop configurations.

Technical data

Full datasheet

Dimensions (L x H x W)	395.5 x 120 x 45 mm
Materials	High grade 99.9% copper fins, H90 brass tubing, H62 brass end tank chambers, stainless steel side plates, nickel-plated brass plugs
Mass	1.25 kg
Ports	4 x G1/4"
FPI	18
Fan dimension	120 mm

Number of fans	3
Mounting method	Direct to chassis with Phillips head screws
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

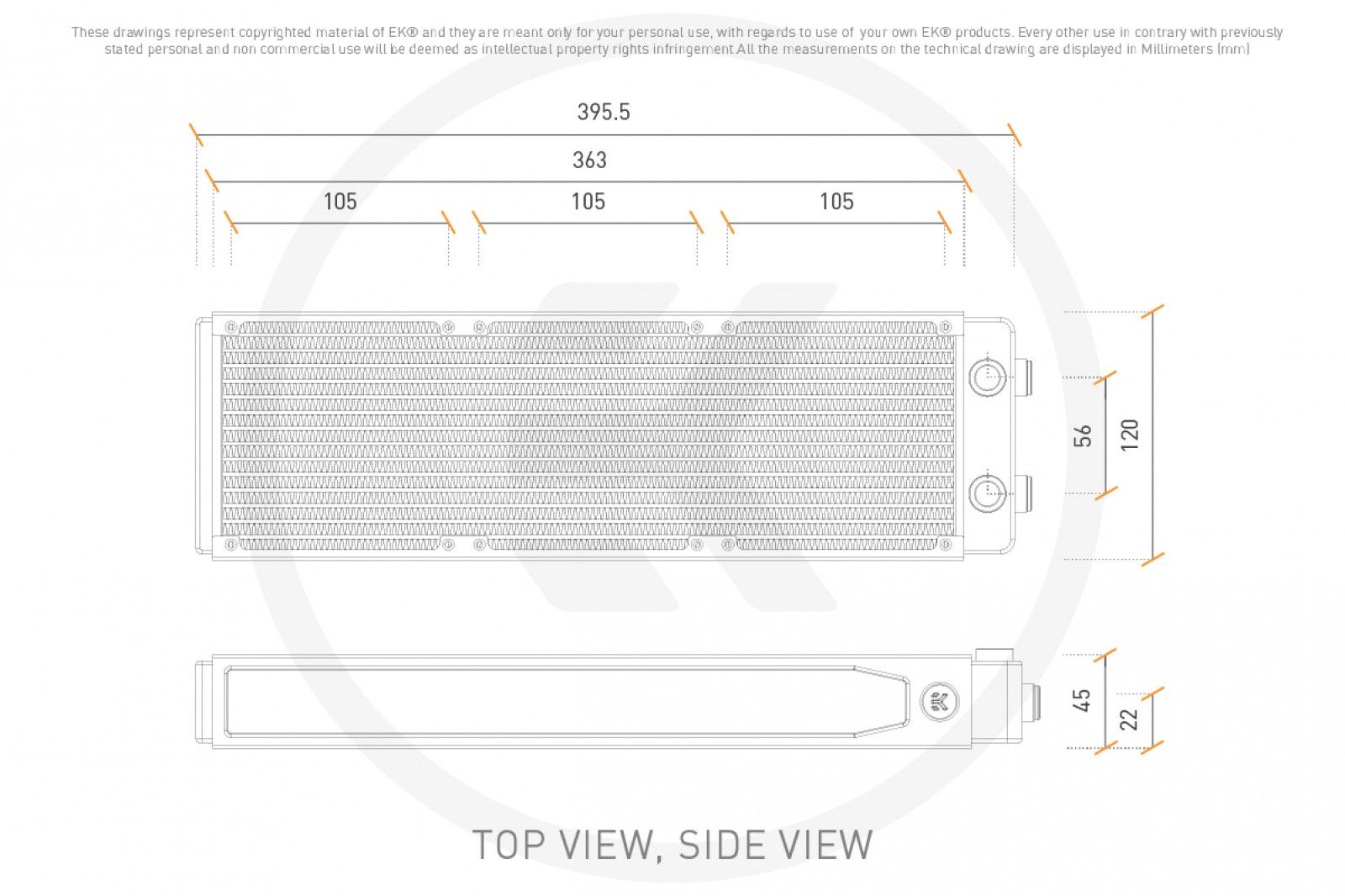

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro.

Compatibility

Fan Compatibility

Compatible with standard 120 x 120 x 25mm fans. Supports three fans in Push, Pull, or Push/Pull configuration. Precisely 120mm wide for compatibility with most 120mm fan mounts and chassis radiator brackets.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro Radiator P360 Multiport - Black
· 12x Phillips Slotted M4x30mm for 25mm thick fans
· 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case
· 6mm steel Allen (Hex) key
· 9mm steel Allen (Hex) key

360mm Enterprise Radiator for Multi-Block Cooling Loops

Pair with an EK-Pro Pump Reservoir Manifold and GPU or CPU water blocks to build a complete, scalable liquid cooling loop for workstations and server systems.
