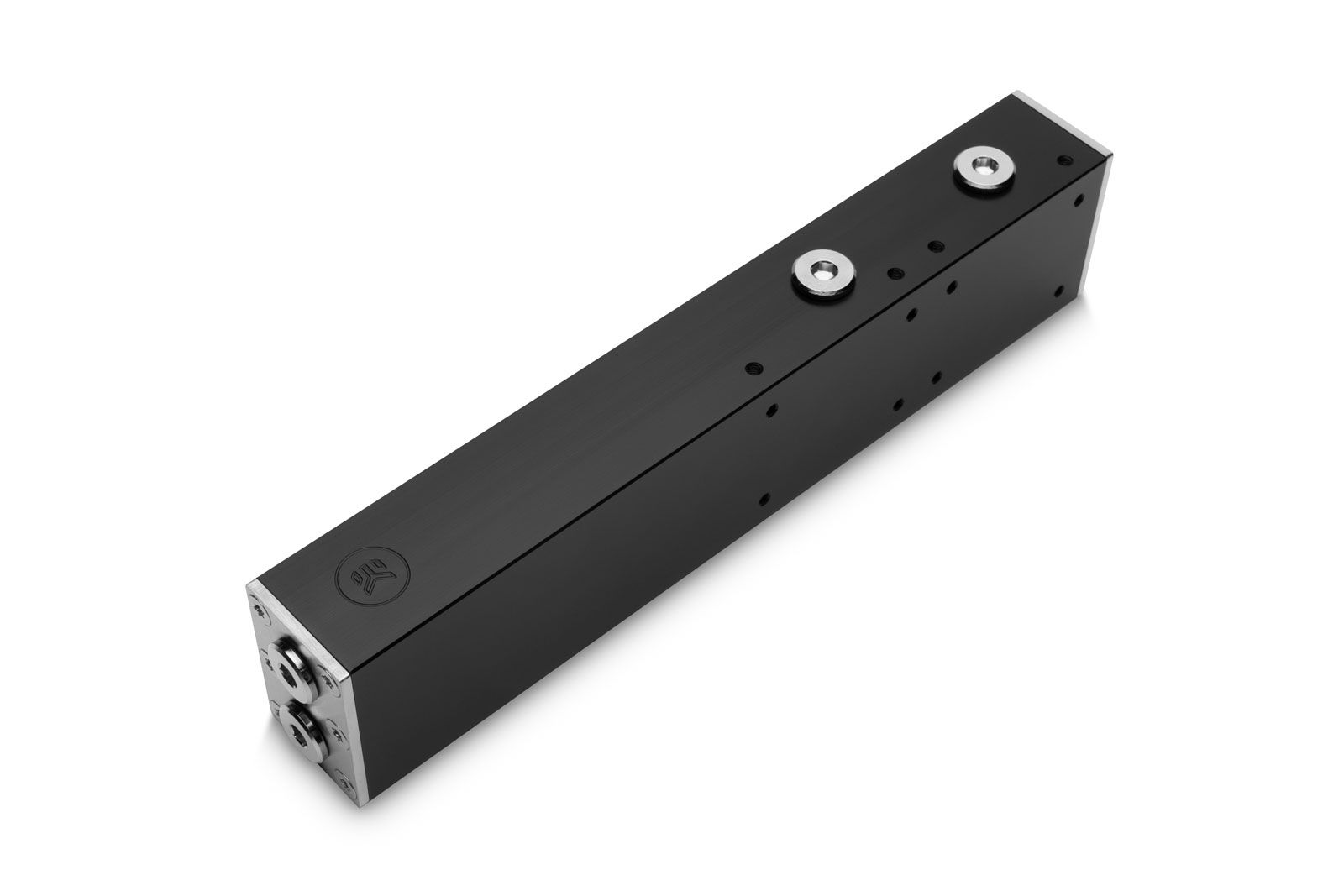

EK-Pro Manifold 2CPU 6GPU - Acetal

Product EAN: 3831109817261

Purpose-built coolant distribution manifold for workstations supporting two CPU and six GPU water blocks, with 16 G1/4" ports in a semi-parallel pre-assembled configuration.

Type: -
Ports: 16

Overview

Centralized Coolant Distribution for 2-CPU 6-GPU Workstations

The EK-Pro Manifold is a purpose-built coolant delivery system for workstation systems, supporting multiple water blocks with industry-standard G1/4" ports. It accommodates two CPU and six GPU water blocks in parallel or semi-parallel setups.

The system is optimized for efficiency with EK-Pro GPU and CPU Quick Disconnect Kits (sold separately), facilitating easy addition or removal of water blocks without draining the loop. Constructed with a full acetal body, stainless steel end caps, and nickel-plated brass plugs, it is pre-assembled for semi-parallel use. Note: Additional plugs are required for unused ports.

Centralized Coolant Distribution for 2-CPU 6-GPU Workstations

Key Engineering

Three design decisions worth calling out

16-Port Parallel / Semi-Parallel Layout

Sixteen G1/4" ports support two CPU and six GPU water blocks in parallel or semi-parallel flow, providing flexible loop configuration options for high-GPU-count workstations.

QDC-Compatible Hot-Service Design

Works with EK-Pro Quick Disconnect Kits (sold separately) for individual block addition or removal without loop drain. Unused ports require additional plugs (sold separately).

Full Acetal Body + Stainless Steel End Caps

POM acetal body and stainless steel end caps with nickel-plated brass plugs deliver chemical compatibility and long-term durability across all standard liquid cooling fluids.

Technical data

Full datasheet

Dimensions (L x H x W)	266 x 57 x 36 mm (without the mounting system)
Materials	POM, stainless steel, nickel-plated brass
Mass	0.759 kg
Ports	16 x G1/4" – supports 2 x CPU and 6 x GPU water blocks

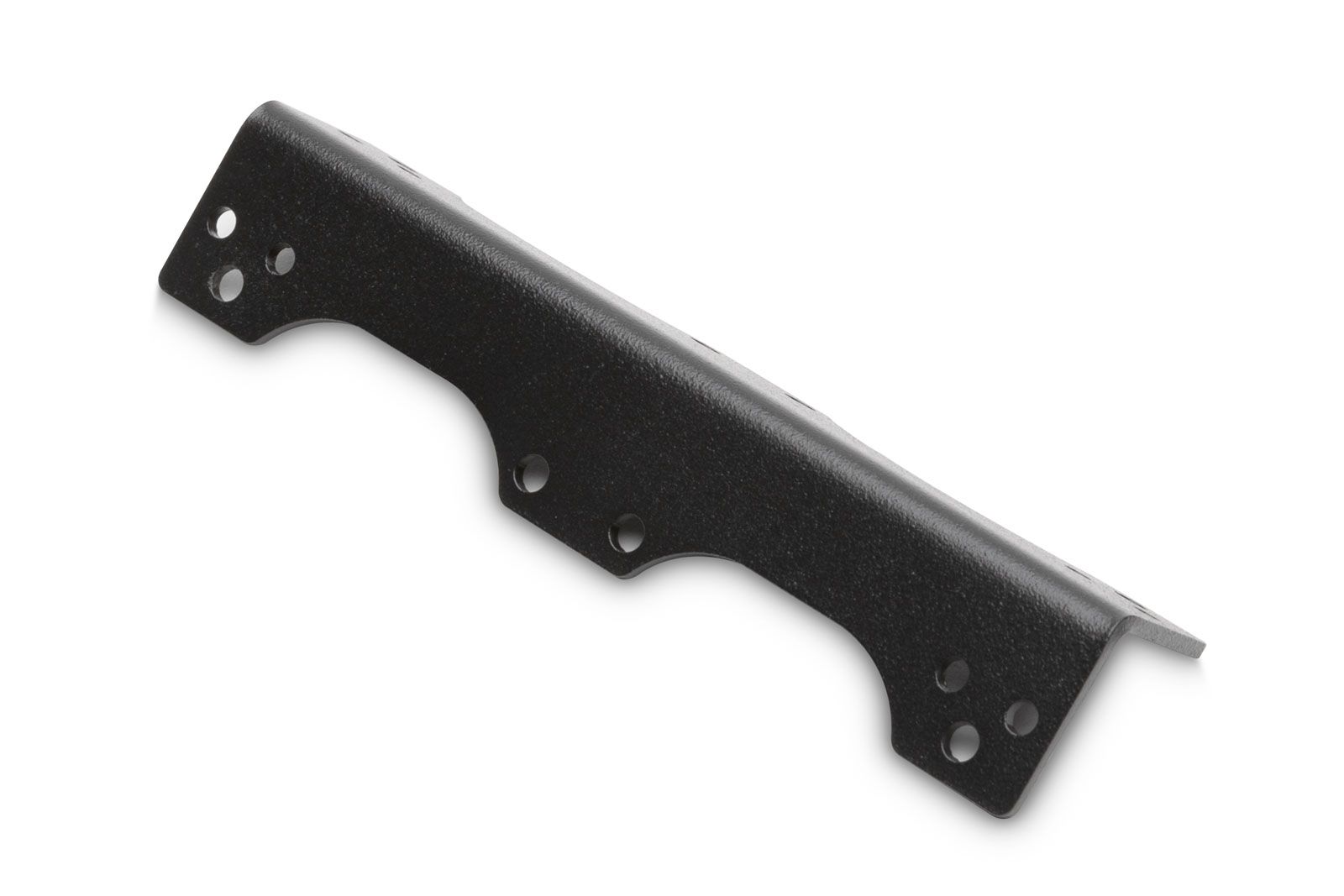

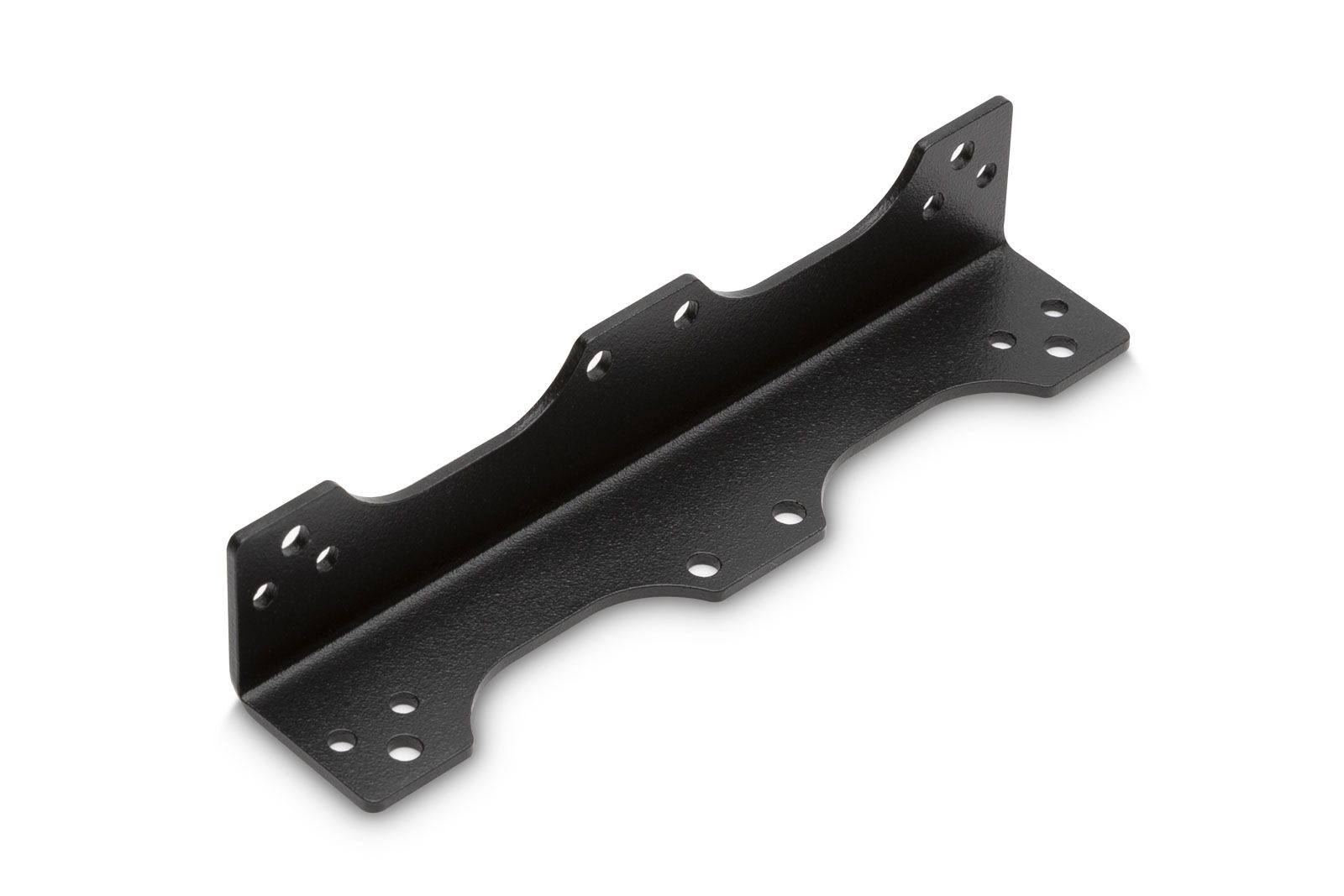

Mounting method	Manifold mounting plate
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

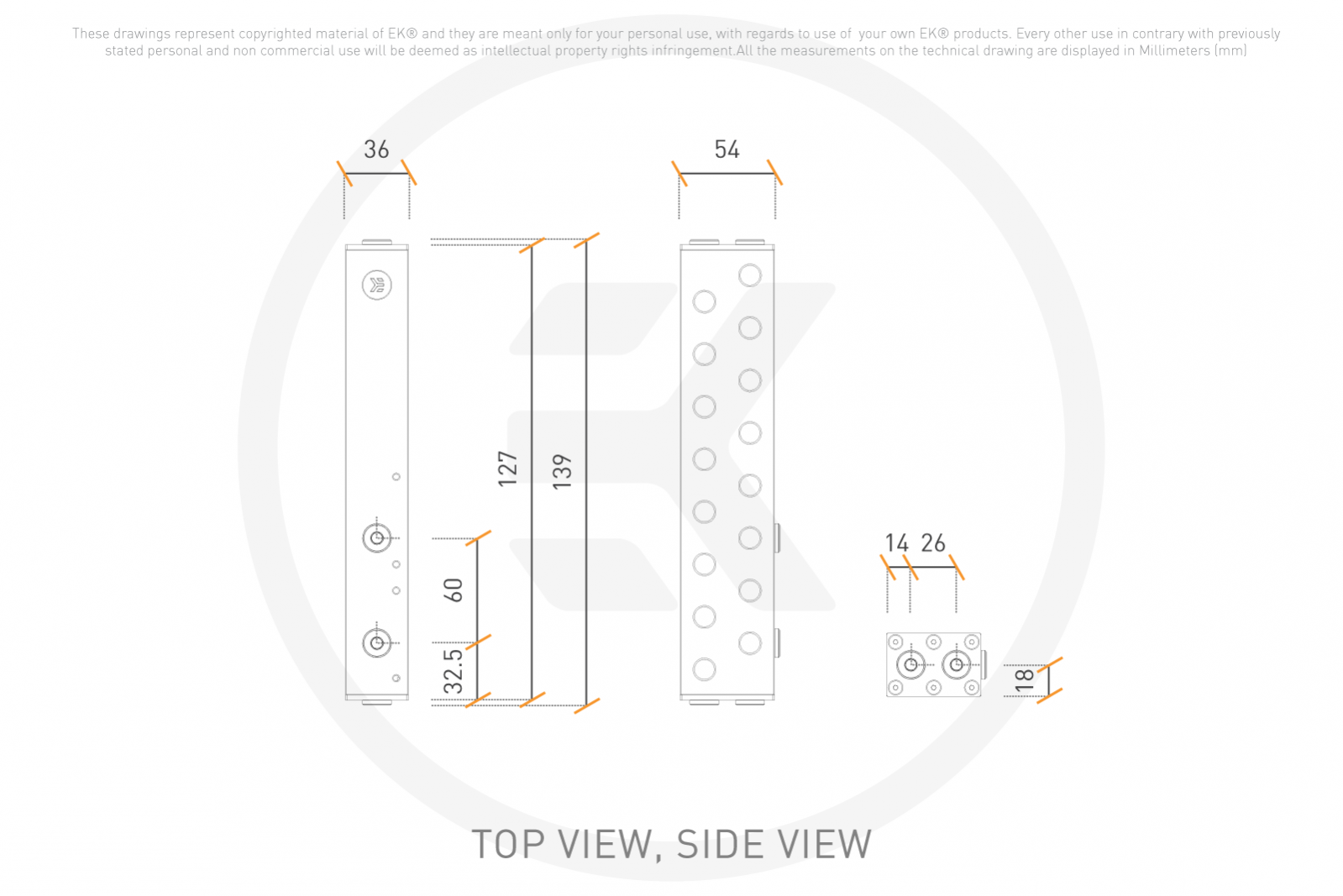

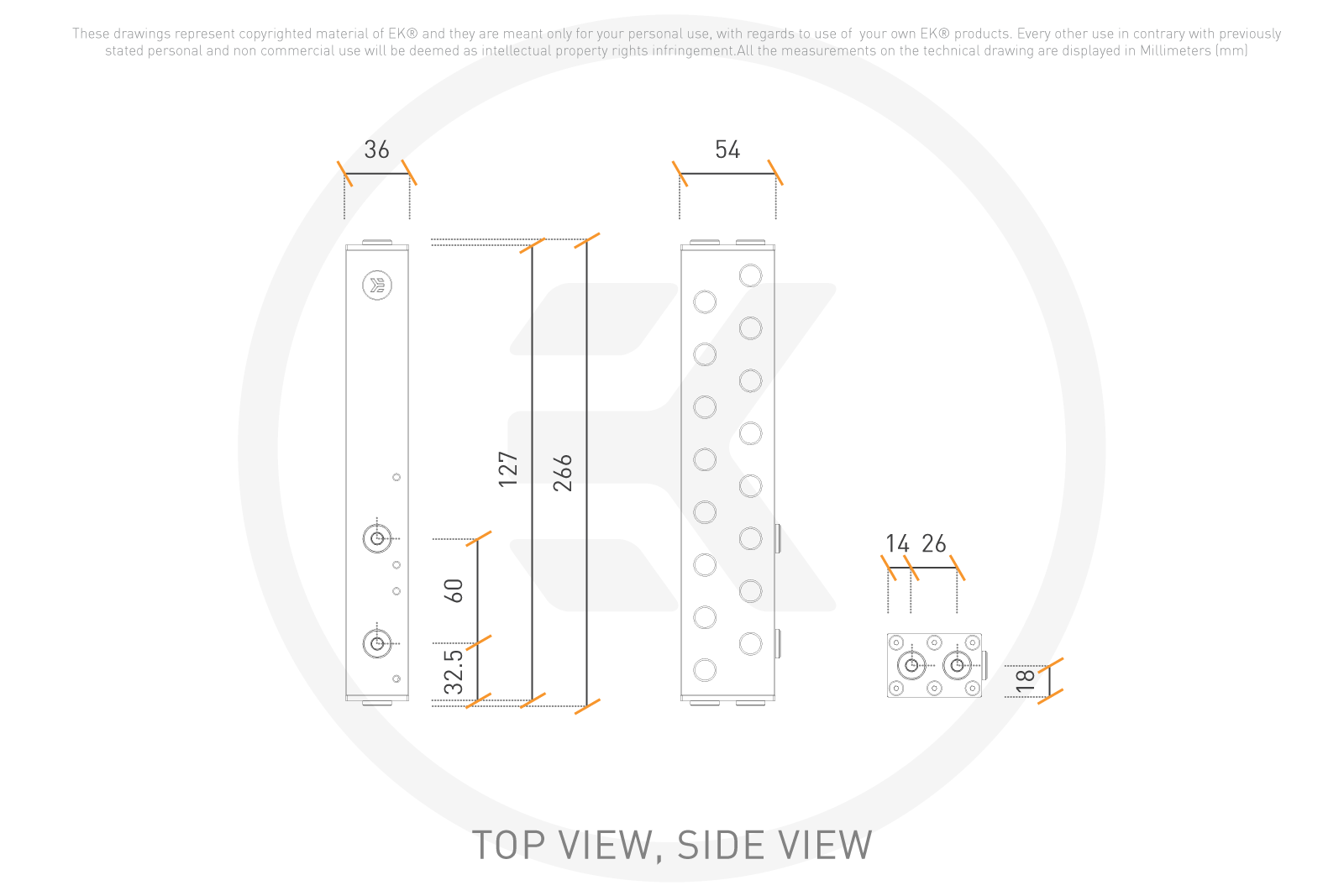

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro.

Compatibility

System Compatibility

Supports up to two CPU and six GPU water blocks with standard G1/4" ports. Compatible with EK-Pro Quick Disconnect Kits. Unused ports require additional G1/4" plugs (sold separately). Universal mounting plate included.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro Manifold 2CPU 6GPU - Acetal (pre-assembled)
· 7× G1/4 Plugs
· 1× Allen key 6mm
· 1× Allen key 2,5mm
· 1× Manifold mounting
· 4× Screws M4 x 6mm DIN7984

Six-GPU Coolant Distribution for High-Density Workstations

Combine with EK-Pro Quick Disconnect Kits and a Pump Reservoir Manifold for a fully serviceable cooling loop across six-GPU workstation compute platforms.
