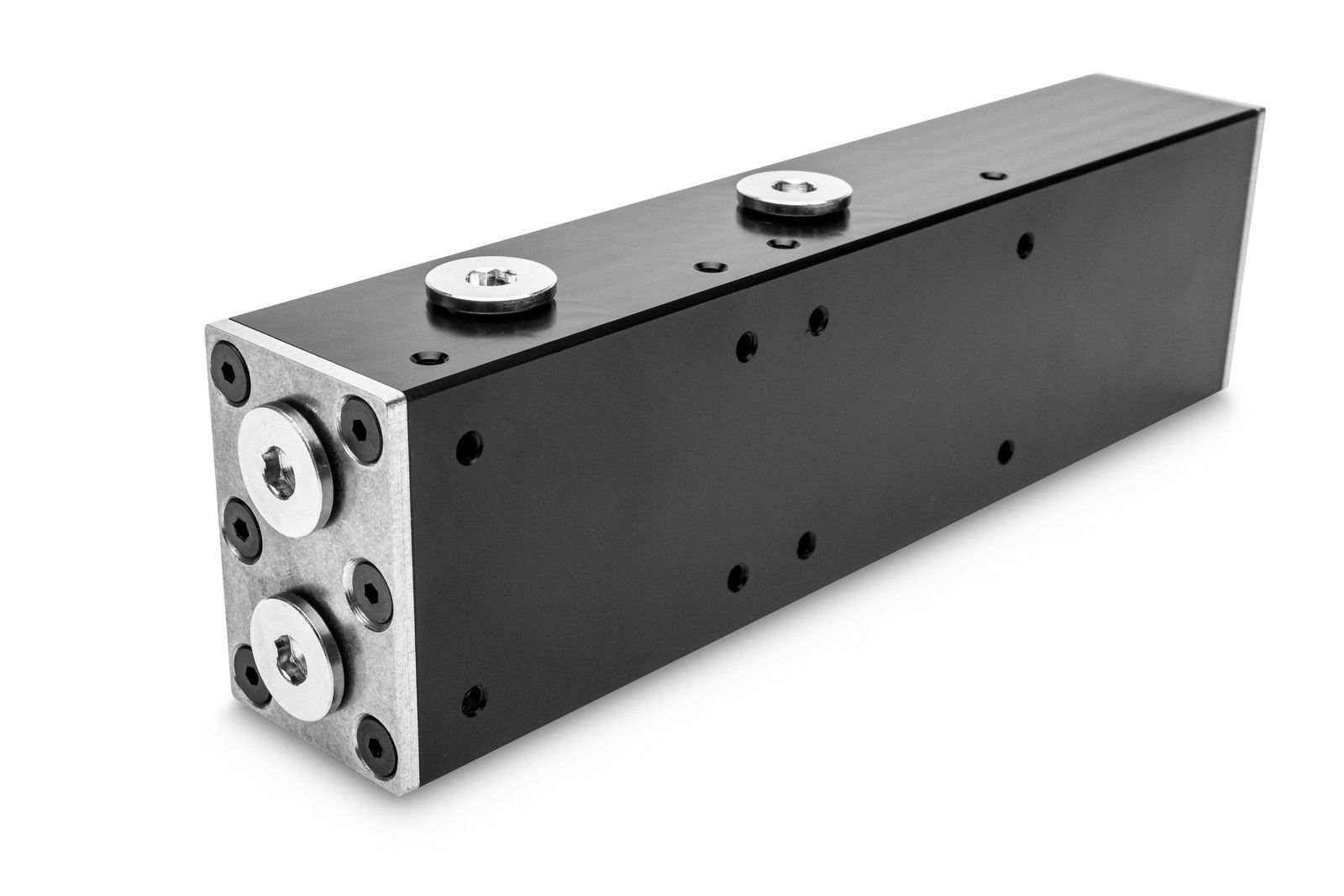

EK-Pro Manifold 2CPU 4GPU - Acetal

Product EAN: 3831109813485

Coolant distribution manifold for workstation systems supporting two CPU and four GPU water blocks, with 12 G1/4" ports and optional Quick Disconnect Kit compatibility.

Type: -
Ports: 12

Overview

Centralized Coolant Distribution for 2-CPU 4-GPU Workstations

The EK-Pro Manifold streamlines coolant delivery for multiple water blocks in workstation systems, offering precise distribution with industry-standard G1/4" ports. Supporting two CPU and four GPU water blocks, it minimizes downtime with optional Quick Disconnect Kits for easy block addition or removal without draining the loop.

It has an acetal body, stainless steel caps, and nickel-plated brass plugs and is pre-assembled for semi-parallel use. It includes a universal mounting system with fan patterns for various cases.

Centralized Coolant Distribution for 2-CPU 4-GPU Workstations

Key Engineering

Three design decisions worth calling out

12-Port Semi-Parallel Layout

Twelve G1/4" ports cover two CPU and four GPU water blocks in a pre-configured semi-parallel flow arrangement, minimising loop planning complexity in high-component-count workstations.

Optional QDC Compatibility

Pairs with EK-Pro GPU and CPU Quick Disconnect Kits (sold separately) for individual block removal and reinsertion without loop drain, reducing maintenance downtime.

POM Acetal + Stainless Steel

Full acetal body with stainless steel end caps and nickel-plated brass plugs provides chemical resistance and long-term structural reliability across continuous operating cycles.

Technical data

Full datasheet

Dimensions (L x H x W)	206 x 57 x 36 mm (without the mounting system)
Materials	POM, stainless steel, nickel-plated brass
Mass	0.619 kg
Ports	12 x G1/4" – supports 2 x CPU and 4 x GPU water blocks

Mounting method	Manifold mounting plate
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Compatibility

System Compatibility

Supports up to two CPU and four GPU water blocks with standard G1/4" ports. Compatible with EK-Pro Quick Disconnect Kits. Universal mounting plate fits 120mm and 140mm fan mount patterns across a range of workstation chassis.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro Manifold 2CPU 4GPU - Acetal (pre-assembled)
· 7× G1/4" port plugs
· 1× Allen key 6mm
· 1× Allen key 2,5mm
· 1× Manifold mounting
· 4× Screws M4 x 6mm DIN7984

Scalable Coolant Distribution for 4-GPU Workstations

Add EK-Pro Quick Disconnect Kits and a Pump Reservoir Manifold to build a fully serviceable liquid cooling loop for demanding multi-GPU compute workstations.
