EK-Pro GPU WB RTX A5500 Rack Nickel + Inox
Product EAN: 3831109904770- Compatibility
- NVIDIA RTX™ A5500
- Form factor
- rack
RTX A5500 Rack
The EK-Pro GPU WB RTX A5500 Rack Nickel + Inox is a single-slot water block for the NVIDIA RTX™ A5500 designed to fit FHFW server chassis. The Open Split-Flow cooling engine covers the GPU die, VRAM, and VRM and is particularly suited to multi-GPU setups where even coolant temperature distribution across all cards is required.

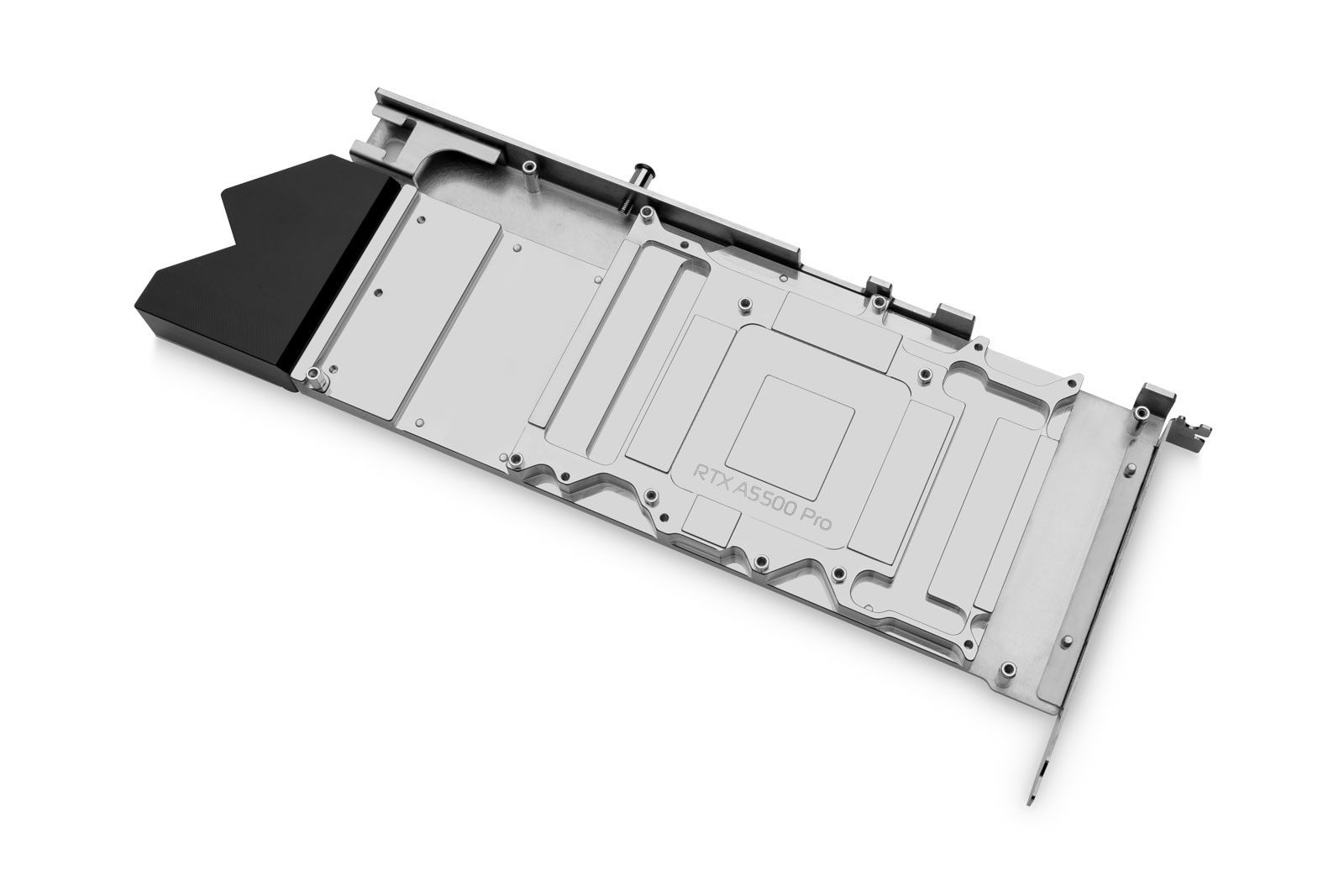

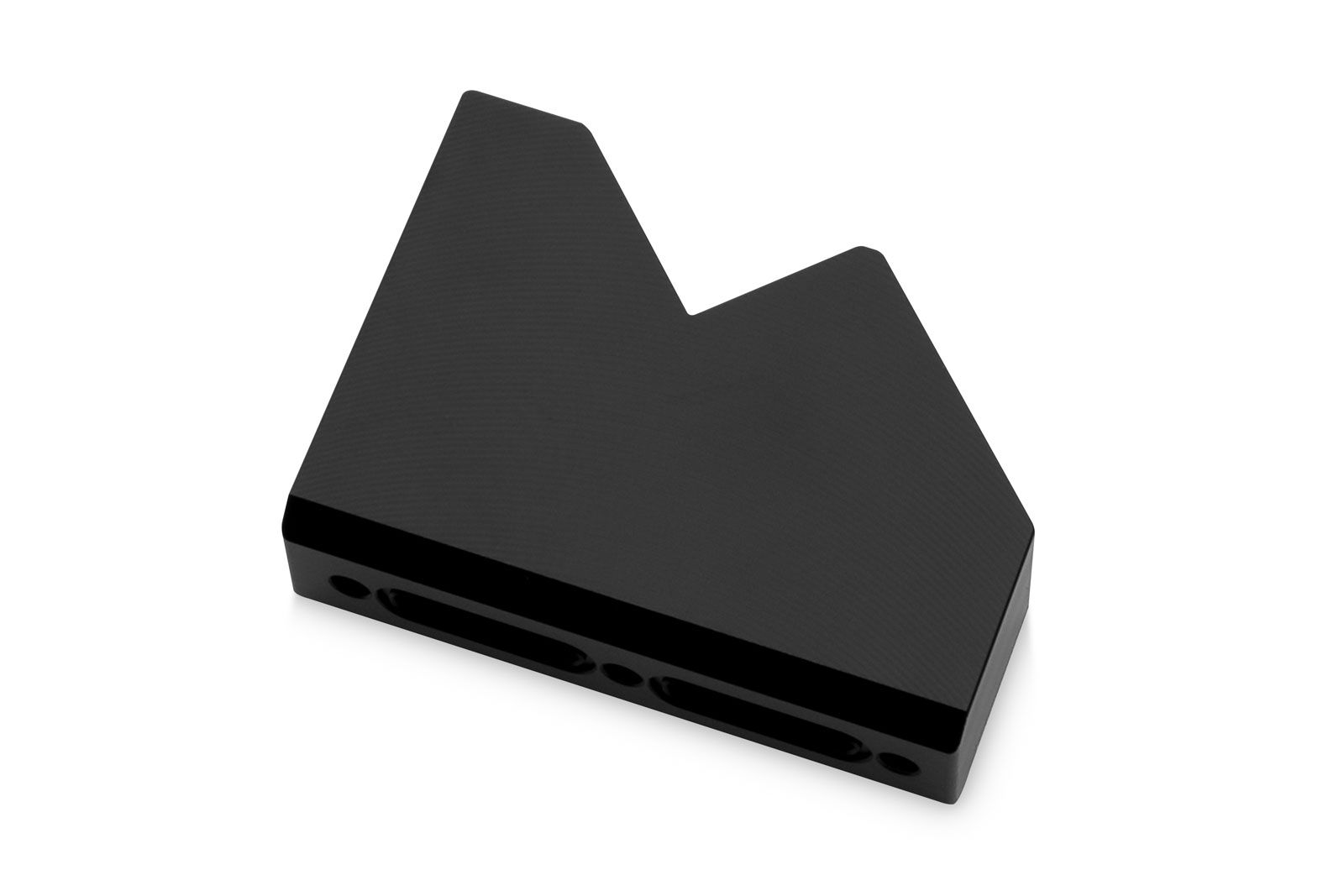

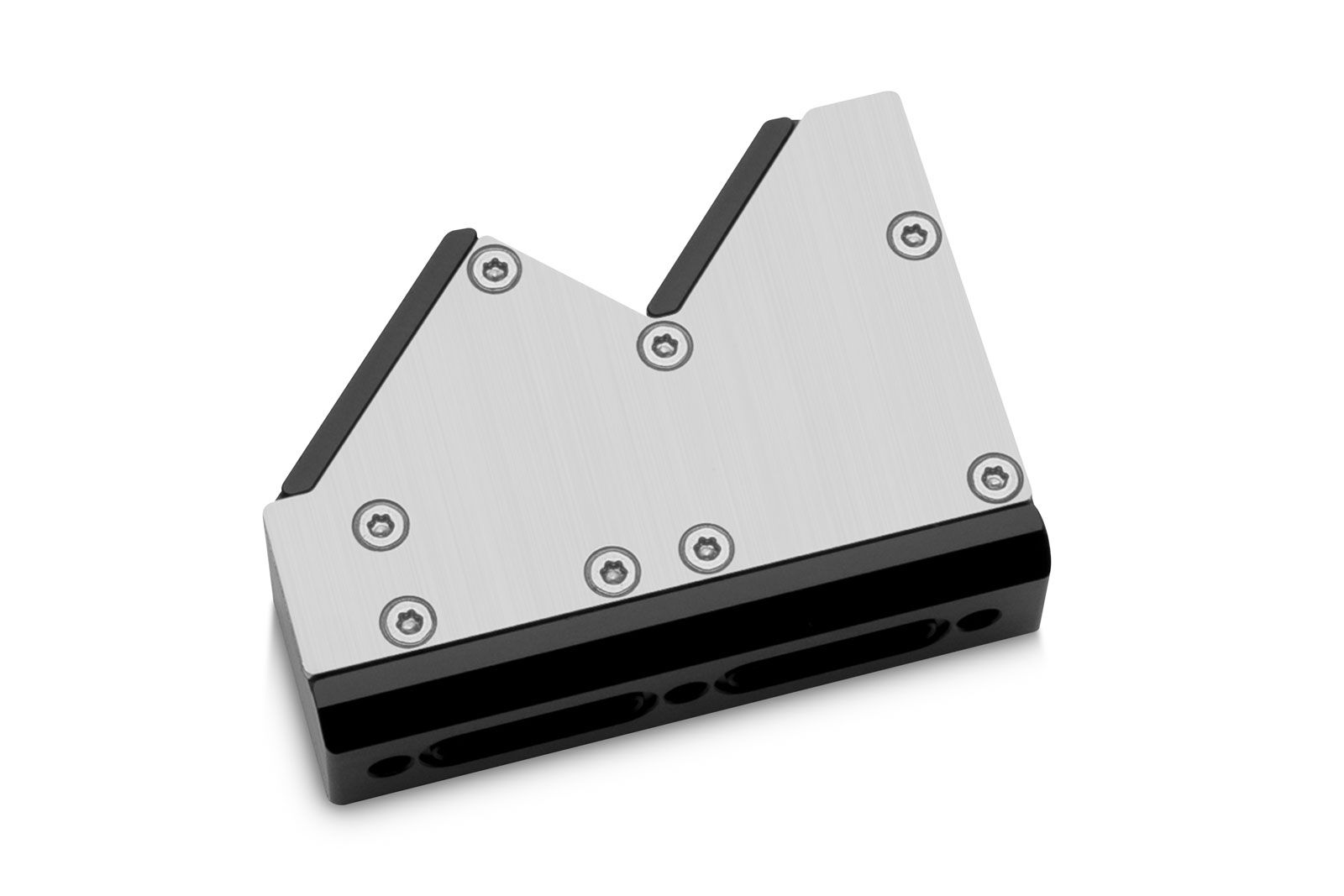

The block features a nickel-plated copper base and stainless-steel top, an integrated I/O plate, and a 45°-angled terminal block with two G1/4″ ports for integration with EK-Pro QDC kits. The retention backplate provides PCB rigidity and passive VRM cooling. NVLink connector compatibility is maintained.
Side-mounted standoffs ensure secure GPU mounting during chassis transport. EPDM O-ring sealing and pre-installed brass standoffs are included throughout.
Three design decisions worth calling out
Open Split-Flow for multi-GPU setups
The Open Split-Flow geometry produces even pressure distribution across the die contact surface. In multi-GPU manifold-fed setups, the block is designed to operate with reversed water flow where required, ensuring consistent coolant temperature across all cards in the chassis.
FHFW single-slot with NVLink clearance
The block fits a single PCIe x16 slot in FHFW server chassis. The integrated I/O plate and retention backplate maintain NVLink connector geometry, supporting dual-GPU NVLink configurations. Side-mounted standoffs prevent PCIe slot flex during chassis transport.
Pressure envelope
Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are published at the supplier level.
Full datasheet
| Compatibility | NVIDIA RTX™ A5500 |
| Form factor | FHFW rack (single PCIe x16 slot) |
| Dimensions | 311 × 141.2 × 23.5 mm |
| Mass | 1.643 kg |
| Ports | 2 × G1/4″ |
| Base material | Nickel-plated copper |
| Top material | Stainless steel |
| Terminal | POM Acetal, 45° angled |
| Seals | EPDM O-rings |
| Mounting method | Backplate |
| NVLink compatible | Yes |
| Working pressure | 2 500 Pa |
| Max pressure (with EK-Pro PRM) | 30 000 Pa |
| Max pressure (standalone) | 75 000 Pa |
| Operating temperature | 5 – 60 °C |
| EAN | 3831109904770 |
All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.
Top & side view, in millimetres
Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.
These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.
Shipped contents
- · EK-Pro GPU WB RTX A5500 Rack - Nickel + Inox workstation and server-grade water block
- · Retention backplate
- · Mounting mechanism with screw-in brass standoffs
- · Necessary mounting screws, nuts, and washers
- · Thermal Interface Material
