Pro workstation

EK-Pro GPU WB RTX 6000 Ada Rack Nickel + Inox

Product EAN: 3831109906668

Compatibility: NVIDIA RTX™ 6000 Ada Generation
NVIDIA Ada L40S 48GB
Form factor: rack

Overview

RTX 6000 Ada Rack

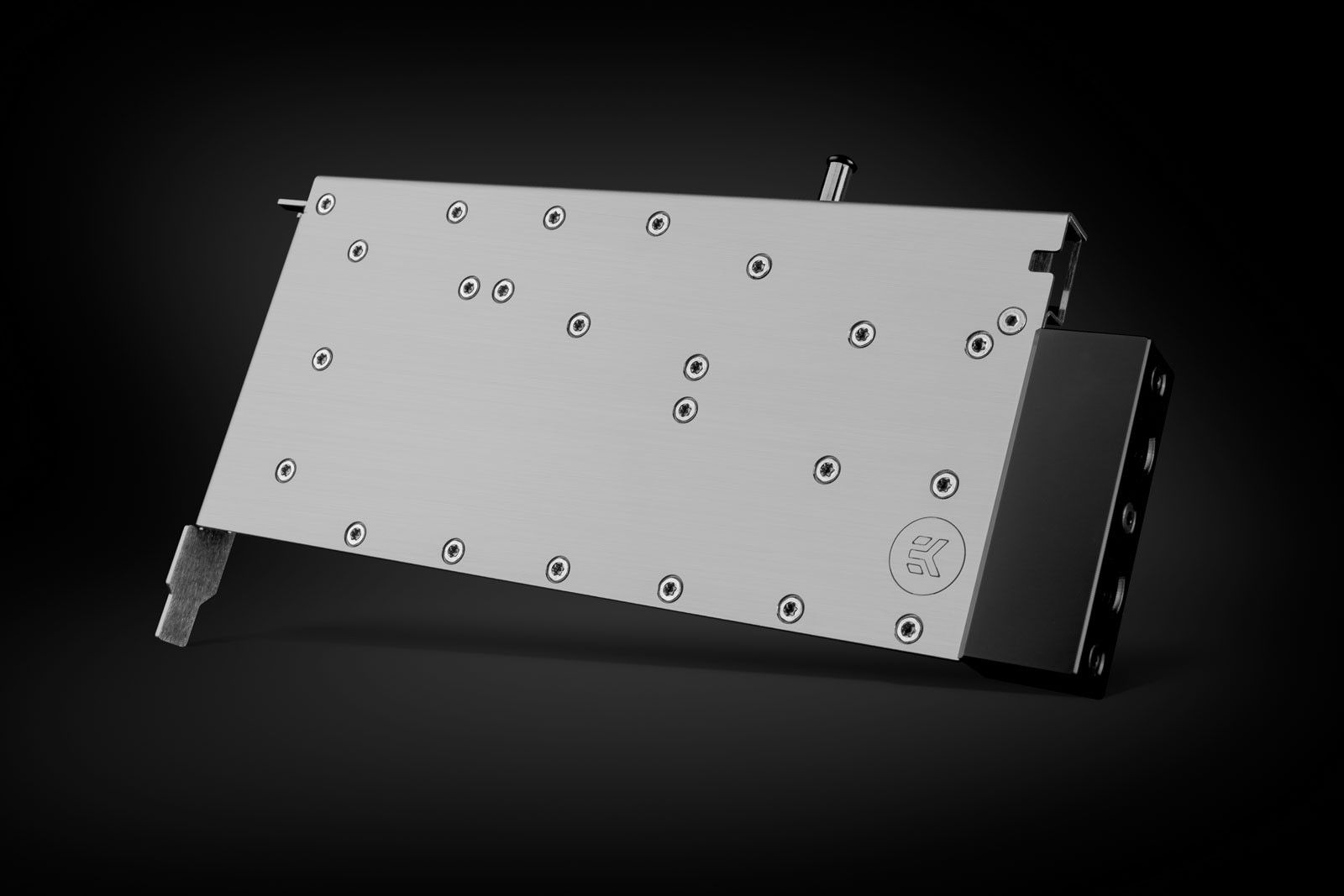

The EK-Pro GPU WB RTX 6000 Ada Rack Nickel + Inox is the 1U slim variant of the RTX 6000 Ada water block family, designed for rack-mounted workstations and dense compute chassis where a single PCIe slot width is the governing constraint. The block routes plumbing vertically, keeping the coolant path inside 1U of chassis height.

Coverage is identical to the workstation variant — GPU die, VRAM, and VRM under the same Open Split-Flow cooling engine. The integrated single-slot I/O plate maintains a clean chassis rear panel. Even cooling with reversed water flow is achieved across multiple GPUs in a manifold-fed setup.

The retention backplate is compatible with the NVIDIA NVLink connector, supporting dual-GPU NVLink configurations in rack deployments. EPDM O-ring sealing and pre-installed brass standoffs are included. A side-mounted standoff provides a brace point for secure GPU mounting during chassis movement.

Key Engineering

Three design decisions worth calling out

Single-slot rack profile

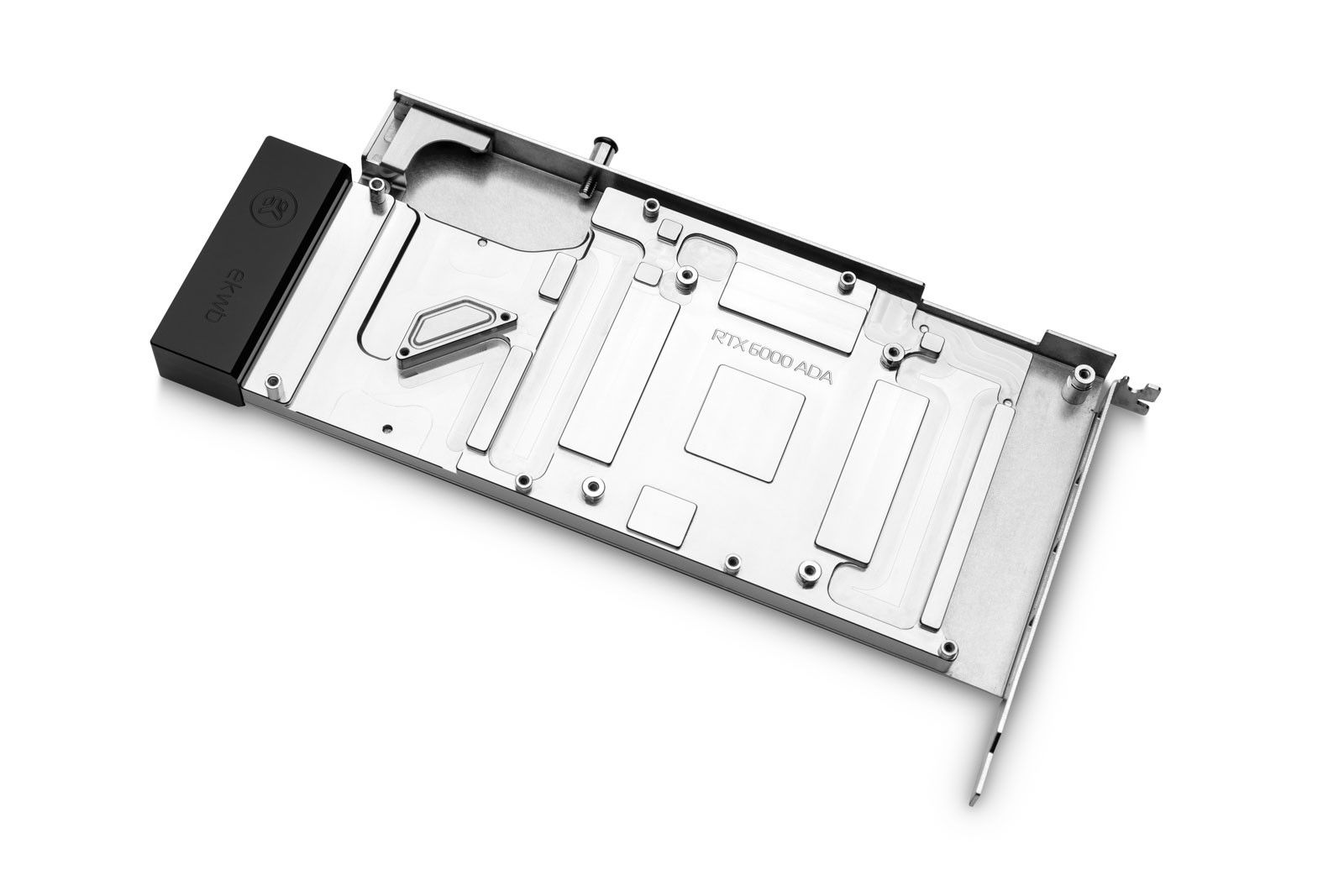

The block is machined to a single PCIe slot width and routes the G1/4″ ports vertically, keeping the coolant path within the 1U chassis vertical envelope. Despite the reduced profile, die, VRAM, and VRM coverage is identical to the full workstation variant — the same copper base contact area and Open Split-Flow channel geometry apply.

Reversed-flow manifold support

The block is designed to operate in reversed water-flow orientation when fed from an EK-Pro manifold, ensuring even coolant temperature distribution across multiple GPUs in a single chassis. NVLink connector clearance is maintained by the retention backplate geometry.

Pressure envelope

Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are published at the supplier level and are consistent across the GPU water-block family.

Technical data

Full datasheet

Compatibility	NVIDIA RTX™ 6000 Ada Generation NVIDIA Ada L40S 48GB
Form factor	1U rack (slim, single PCIe slot)
Dimensions	249 × 138.8 × 24 mm
Mass	1.326 kg
Ports	2 × G1/4″
Base material	Nickel-plated copper
Top material	Stainless steel
Terminal	POM Acetal

Seals	EPDM O-rings
Mounting method	Backplate
NVLink compatible	Yes
Working pressure	2 500 Pa
Max pressure (with EK-Pro PRM)	30 000 Pa
Max pressure (standalone)	75 000 Pa
Operating temperature	5 – 60 °C
EAN	3831109906668

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

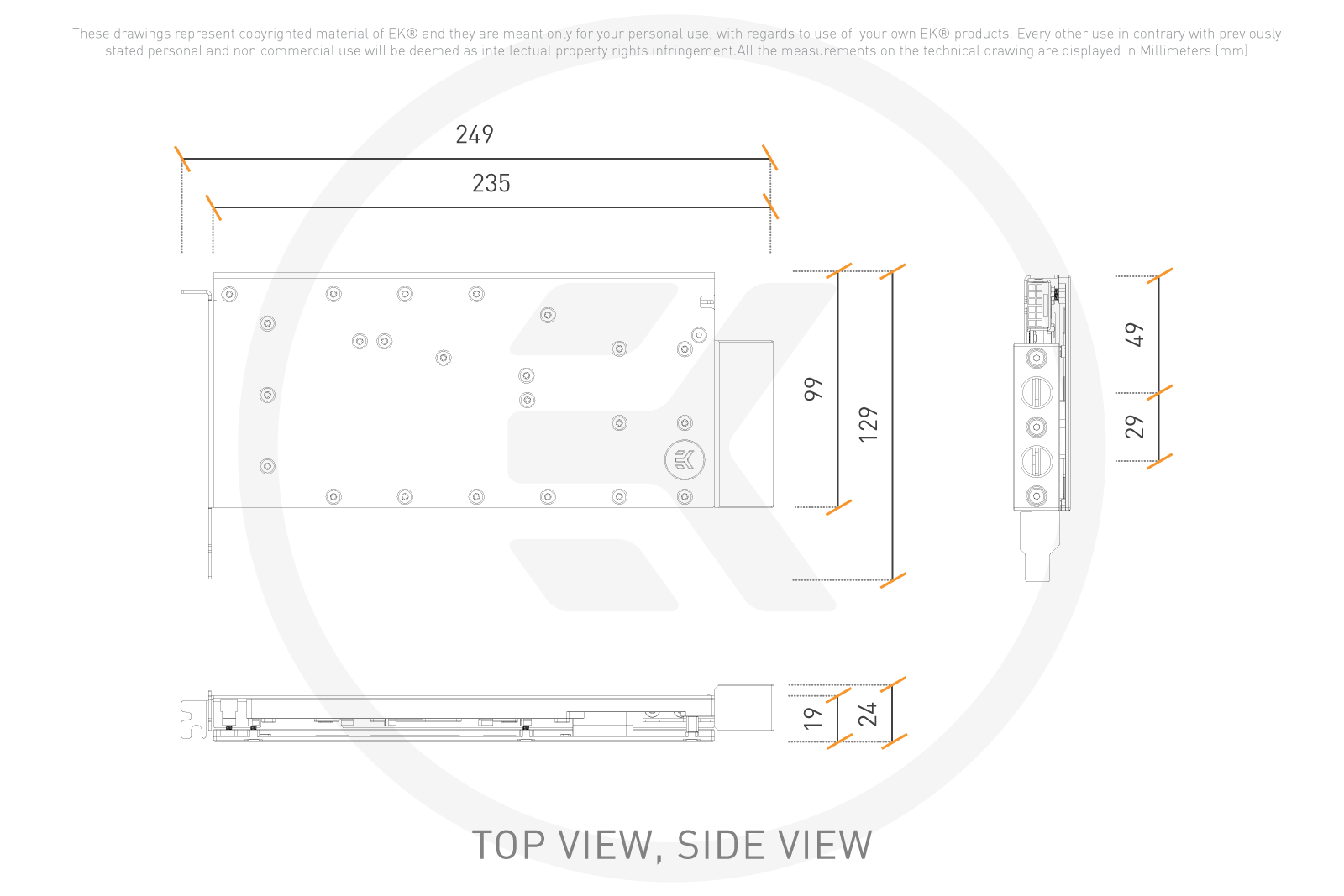

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

NVIDIA RTX™ 6000 Ada Generation \n NVIDIA Ada L40S 48GB

Contact Team

In the Box

Shipped contents

· EK-Pro GPU WB RTX 6000 Ada Rack - Nickel + Inox workstation and server-grade water block
· Retention backplate
· Mounting mechanism with screw-in brass standoffs
· Necessary mounting screws, nuts, and washers
· Thermal Interface Material
