EK-Pro CPU WB 4677 Ni + Acetal

Product EAN: 3831109861103

Enterprise-grade water block for LGA 4677 Intel processors, offering enhanced heat dissipation for 4th gen scalable Xeon processors with three G1/4" threaded ports.

Compatibility: LGA 4677
Platform: Intel

Overview

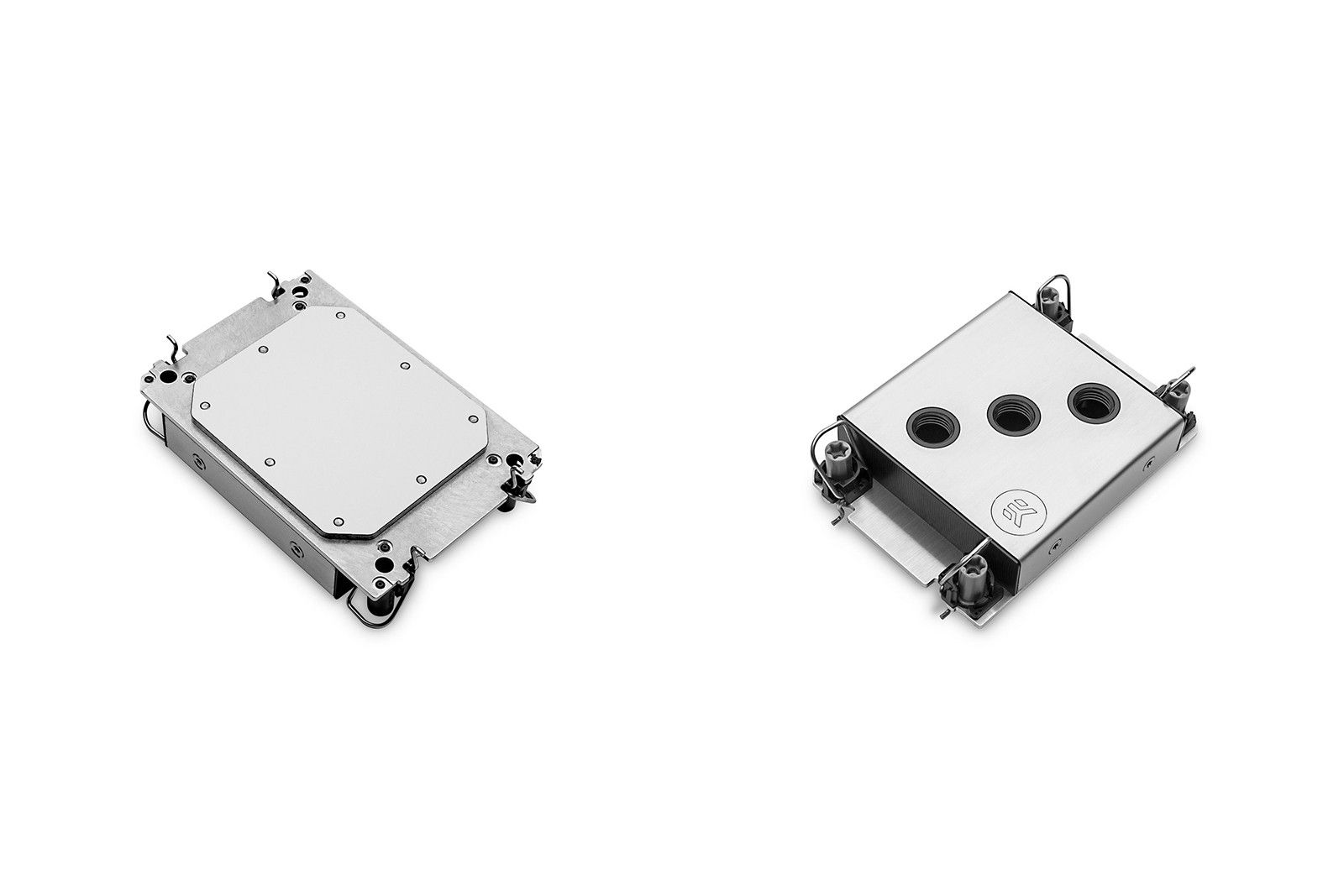

High-Density Cooling for Intel Xeon 4th Gen Scalable

The EK-Pro CPU WB 4677 Ni + Acetal is designed for LGA 4677 Intel processors, offering enhanced heat dissipation for 4th gen scalable Xeon processors. With three G1/4" threaded ports, it suits workstations and taller server racks.

This enterprise-grade water block boasts top-notch thermal performance, reliability, and serviceability. Its copper base ensures optimal cooling, nickel electroplating enhances durability, and the CNC-machined black POM Acetal top adds resilience. The laser-cut stainless steel hold-down bracket ensures secure installation. Ideal for liquid cooling high-density computing systems, it meets demands for performance and connectivity.

High-Density Cooling for Intel Xeon 4th Gen Scalable

Key Engineering

Three design decisions worth calling out

Precision-Machined Copper Base

Pure copper base with nickel electroplating delivers optimal thermal conductivity and long-term corrosion resistance for continuous 24/7 operation under Xeon workloads.

Three Top-Mounted G1/4" Ports

Triple port layout accommodates a wide range of loop configurations in both workstation and server rack environments without requiring low-profile routing.

Laser-Cut Stainless Steel Bracket

The stainless steel hold-down bracket and CNC-machined black POM Acetal top ensure reliable clamping force and chemical resistance across the full operating temperature range.

Technical data

Full datasheet

Dimensions (L x H x W)	118 x 78 x 22.2 mm
Materials	Nickel-plated copper, stainless steel, POM
Mass	0.532 kg
Ports	3 x G1/4"

Mounting method	T30 Torx
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible exclusively with LGA 4677 Intel processors, including 4th gen scalable Xeon processors. Designed for workstations and taller server rack chassis where top-mounted port access is preferred.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB 4677 Ni + Acetal water block
· 1x EK plug G 1/4”
· EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
· 1x Torx T30 Key - 1x 5mm Allen Key
· Thermal grease (1g)

Purpose-Built Cooling for Intel LGA 4677 Xeon Platforms

Integrate with EK-Pro manifolds and QDC kits for a fully serviceable liquid cooling loop in your high-density Intel Xeon workstation or server.
