EK-Pro CPU WB 4189 Rack

Product EAN: 3831109844700

High-performance 1U-compatible water block for LGA 4189 Intel processors with four G1/8" threaded side ports for low-profile server rack applications.

Compatibility: LGA 4189
Platform: Intel

Overview

1U Server Cooling for Intel LGA 4189

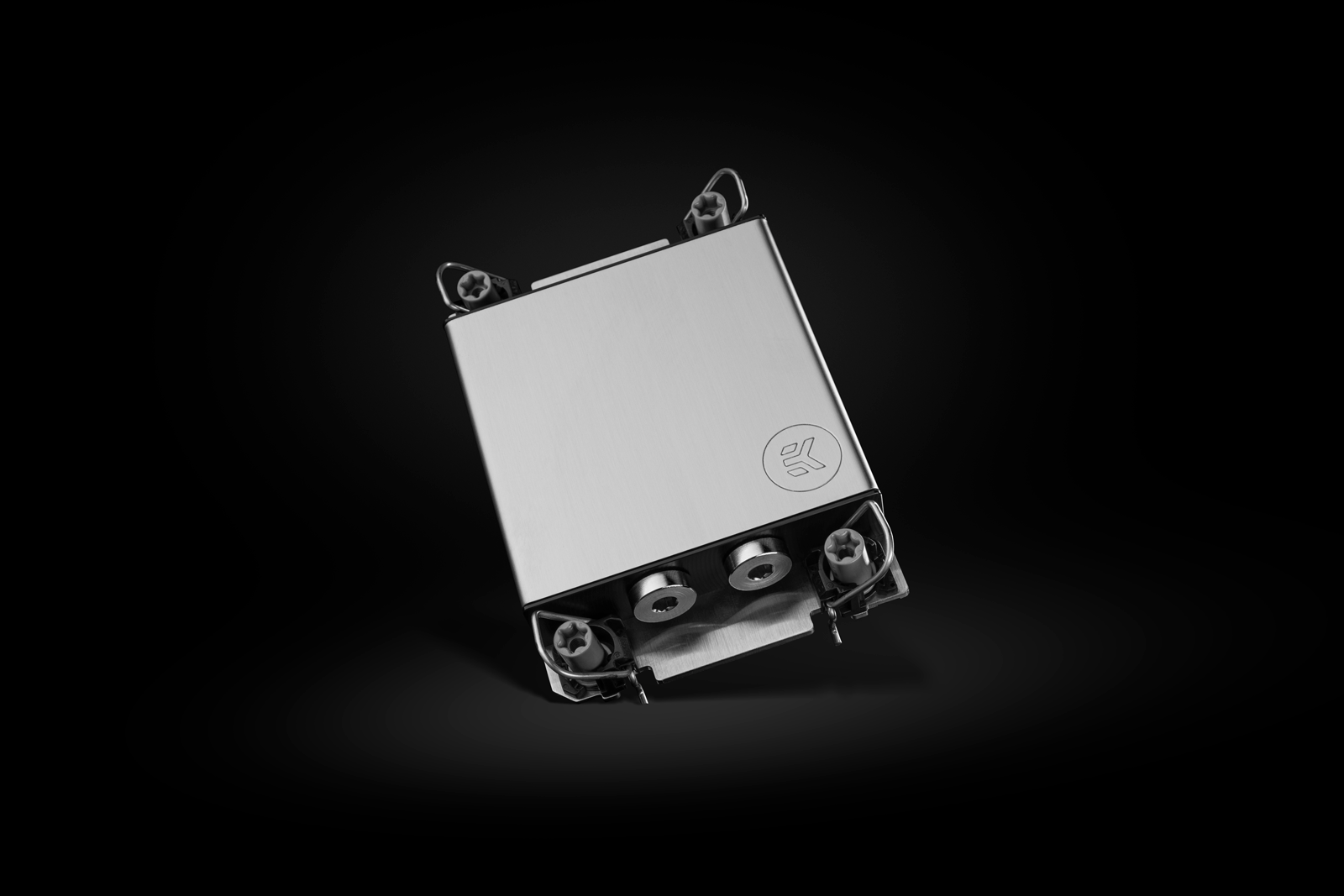

The EK-Pro CPU WB 4189 Rack Ni + Acetal is a high-performance water block designed for LGA 4189 Intel processors, optimized for 1U chassis compatibility. It features four G1/8" threaded side ports for low-profile usage and boasts top thermal performance.

The block's copper base is nickel electroplated, while its top is CNC machined from durable black POM Acetal. The hold-down bracket is laser-cut stainless steel, ensuring reliable installation and long-term structural integrity in rack-mounted server systems.

Key Engineering

Three design decisions worth calling out

1U Low-Profile Design

Side-mounted G1/8" ports allow full coolant loop connectivity within the height constraints of 1U rack chassis running Intel LGA 4189 processors.

Laser-Cut Stainless Steel Bracket

T30 Torx fasteners and a laser-cut stainless steel hold-down bracket deliver uniform clamping force and long-term stability in rack-mount server systems.

Nickel-Plated Copper + POM Acetal

Electroplated copper base and CNC-machined black POM Acetal top provide corrosion resistance and chemical compatibility with standard water cooling fluids.

Technical data

Full datasheet

Dimensions (L x H x W)	113 x 78 x 22.2 mm
Materials	Nickel-plated copper, stainless steel, POM
Mass	0.481 kg
Ports	4 x G1/8"

Mounting method	T30 Torx
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible exclusively with LGA 4189 Intel processors. Optimized for 1U rack server chassis where side-mounted, low-profile port access is required.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB 4189 Rack Ni + Acetal water block
· 2x EK plug G 1/8”
· EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
· 1x Torx T30 Key - 1x 5mm Allen Key
· Thermal grease (1g)

1U Cooling for Intel LGA 4189 Server Platforms

Pair with EK-Pro Pump Reservoir Manifolds and QDC kits for a fully serviceable, rack-optimised cooling loop on Intel LGA 4189 server deployments.
